Fast true 3D laser scan with color texture.
Auto landmark, measurement, and analysis report for foot scans.
Custom shoes and orthotic insoles for foot clinics and retail stores.

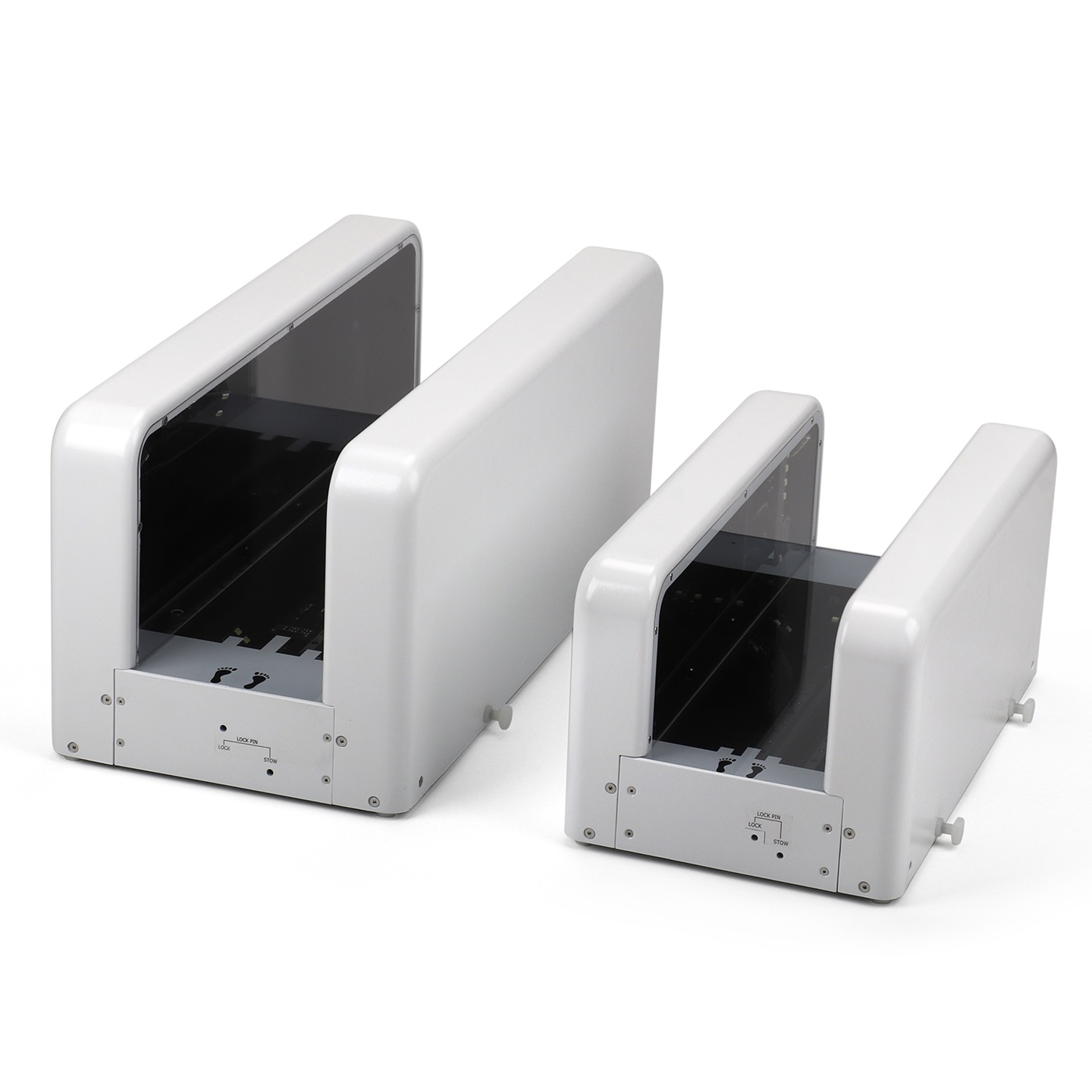

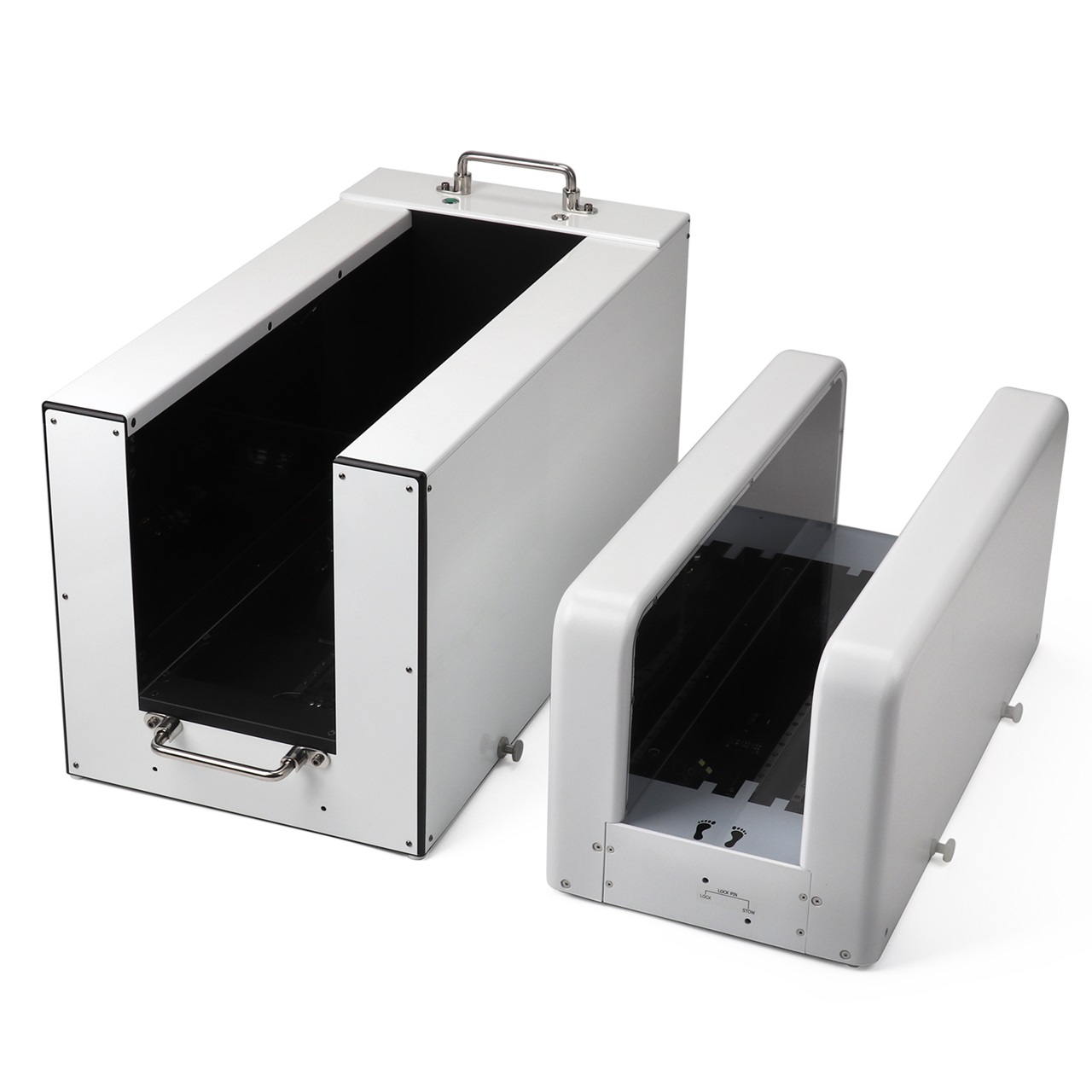

UPOD-HD vs XPOD-HD

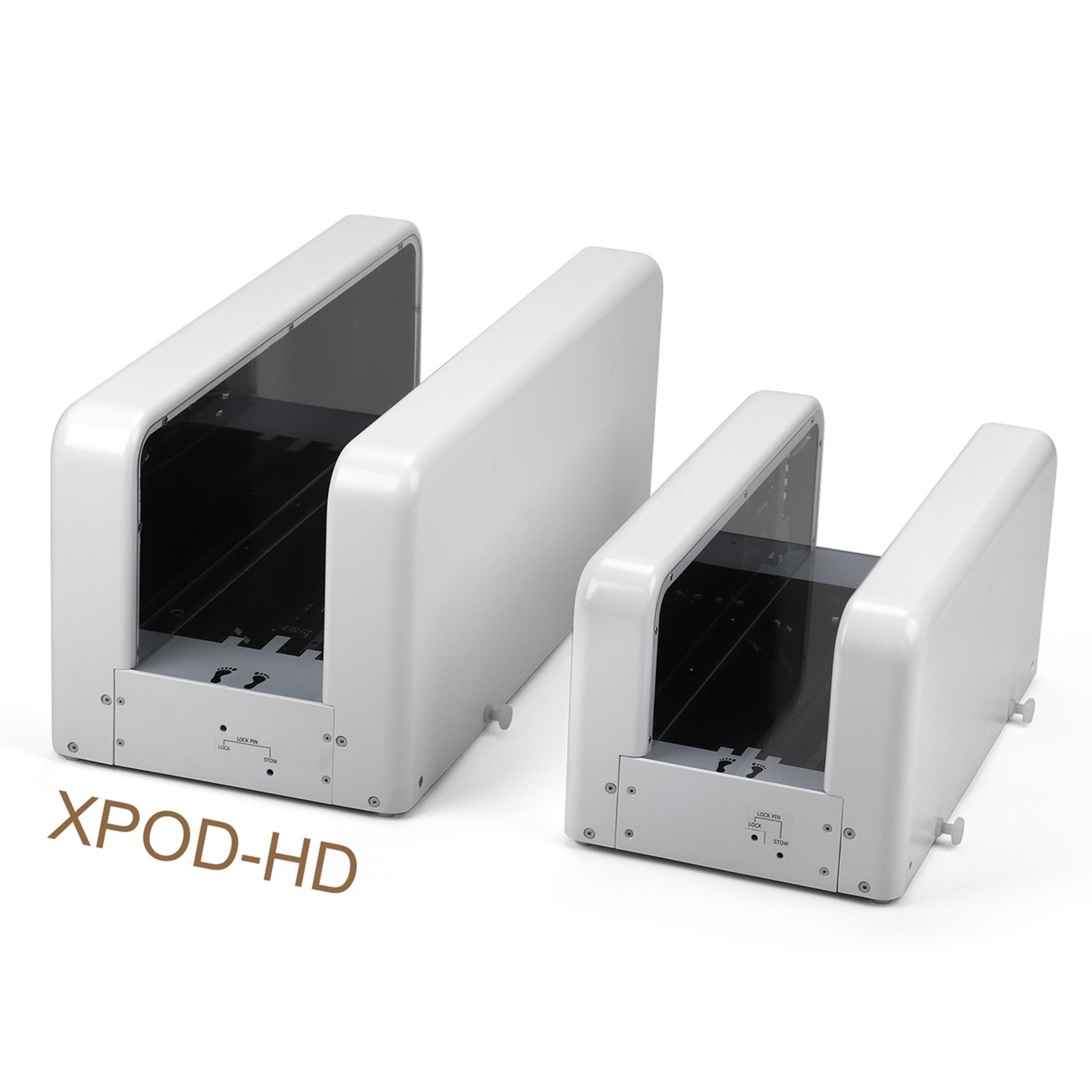

XPOD-HD vs XPOD-S

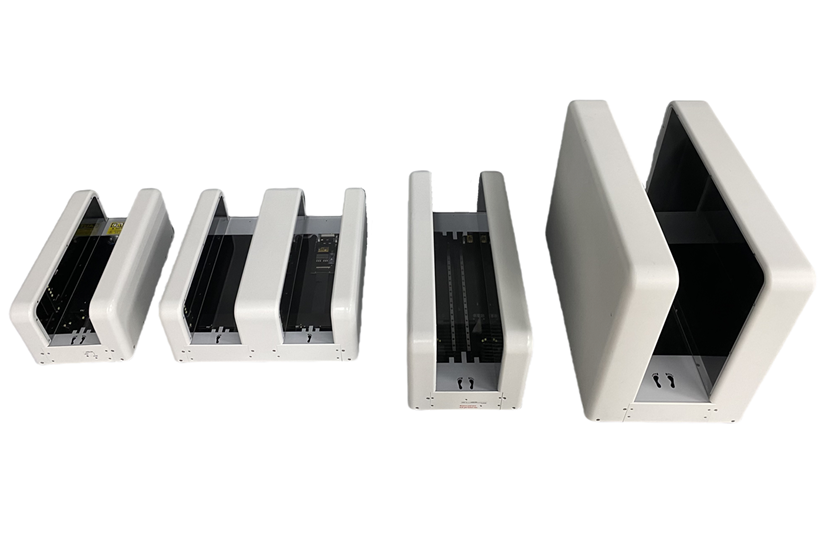

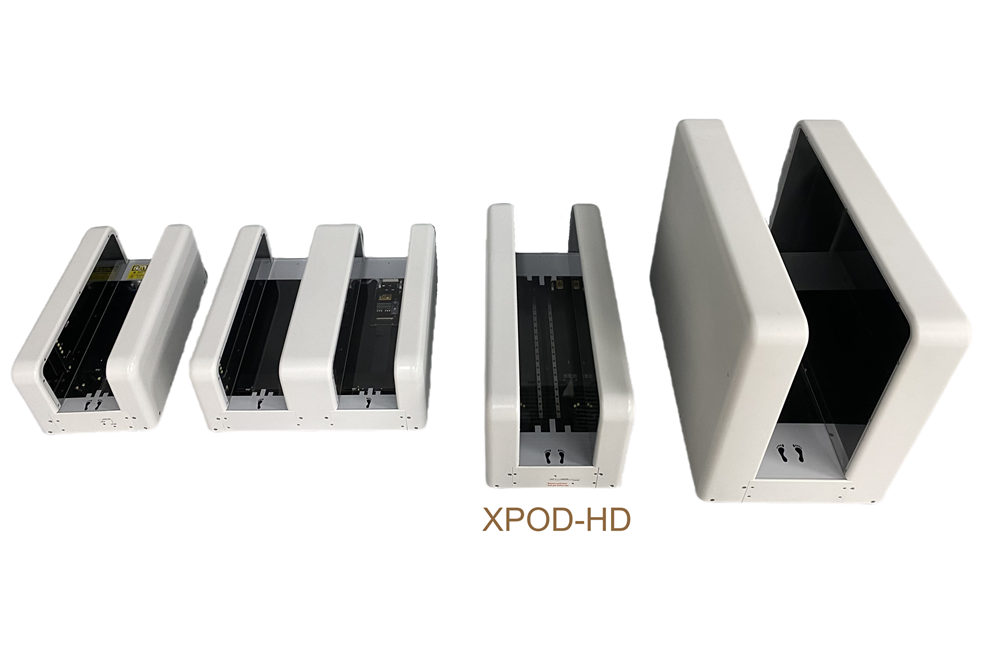

XPOD-S vs XPOD-SS2 vs XPOD-HD vs XPOD-LF

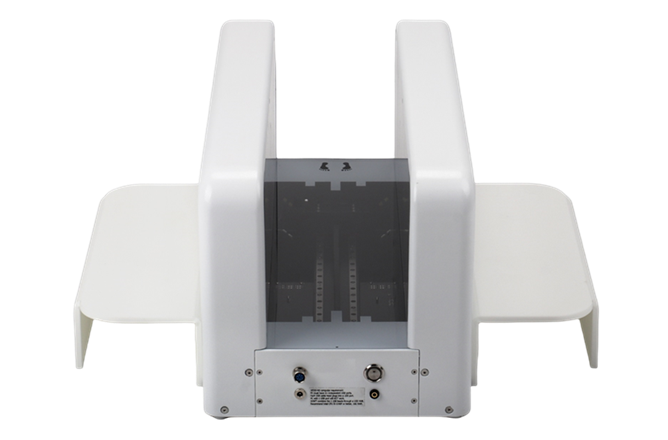

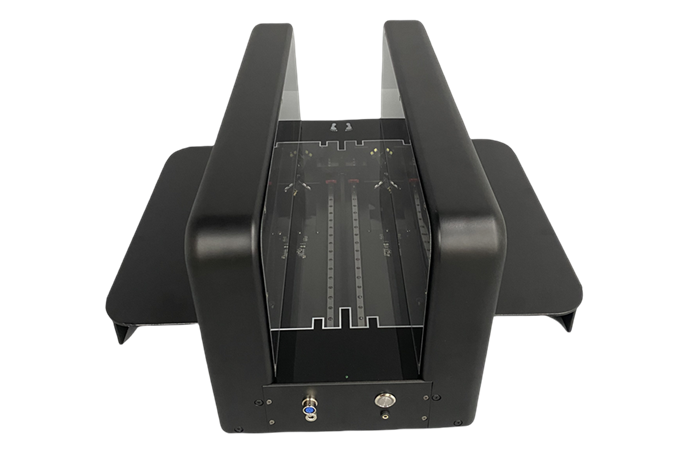

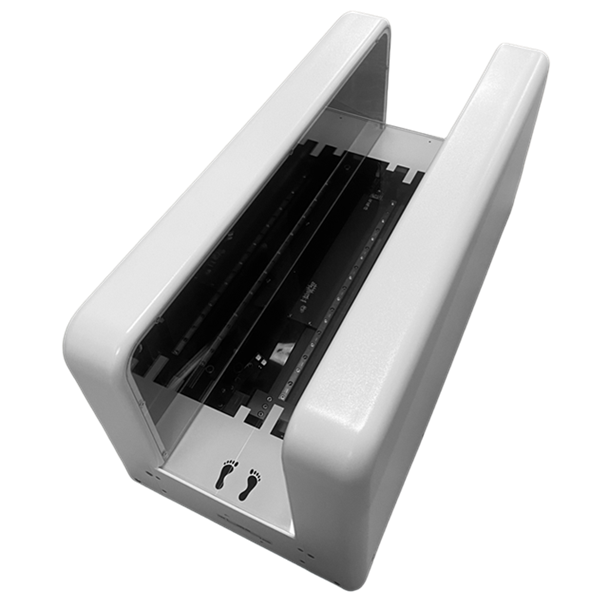

XPOD-HD is more compact and runs more stable than UPOD-HD.
XPOD-HD scans taller and longer than XPOD-S with higher 3D resolution.
XPOD Software improves on UPOD software (Same file formats).
Full-foot 3D with color in non/semi/full-weight

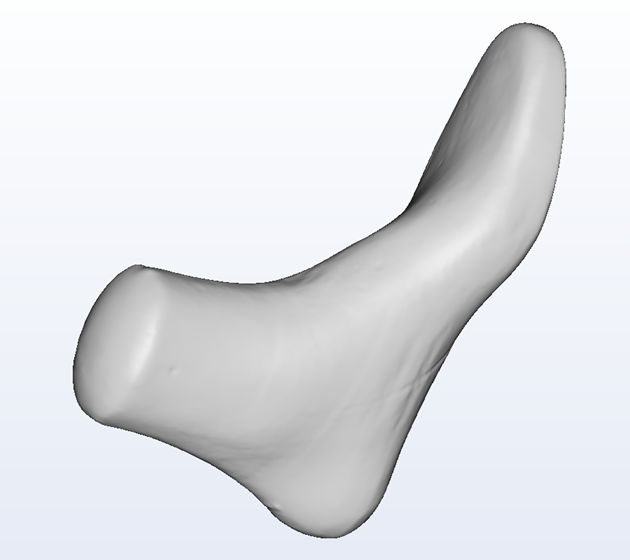

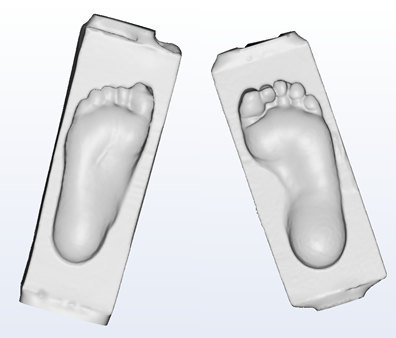

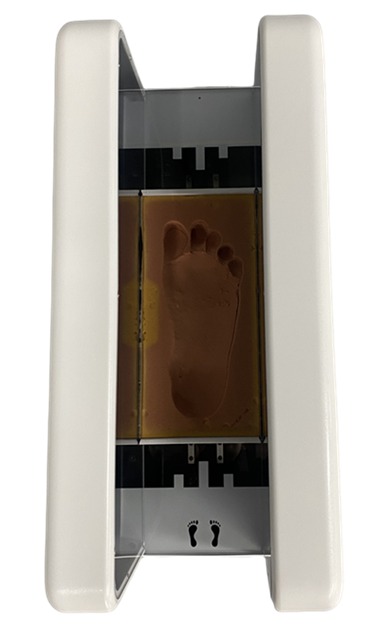

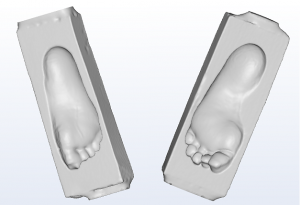

Foam Impression and Shoe Last

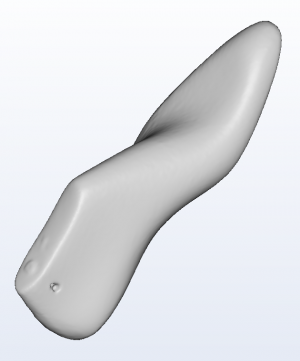

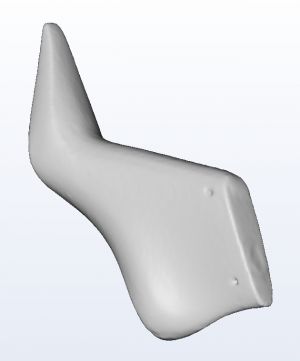

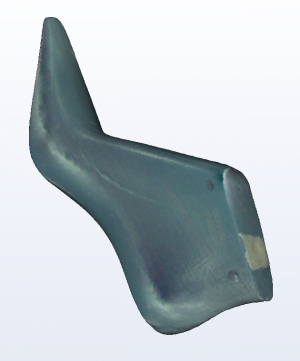

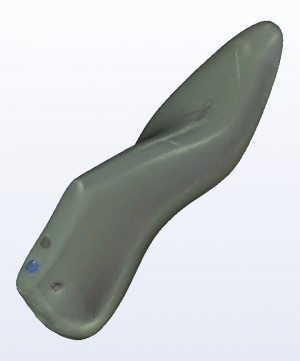

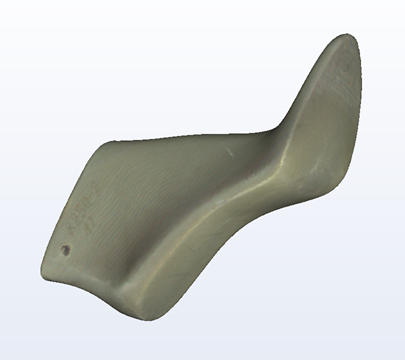

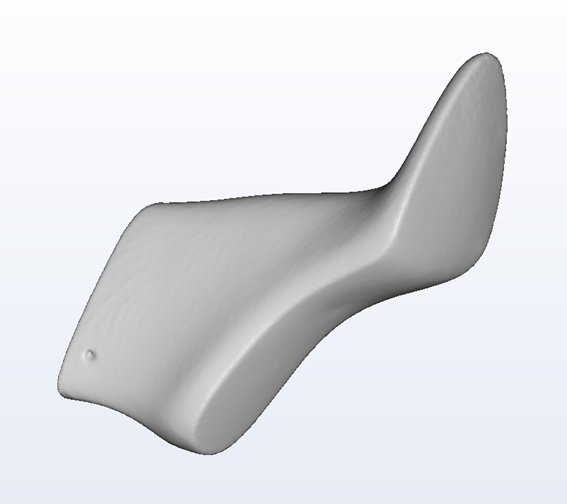

Shoe lasts (shiny surface may require powder coating)

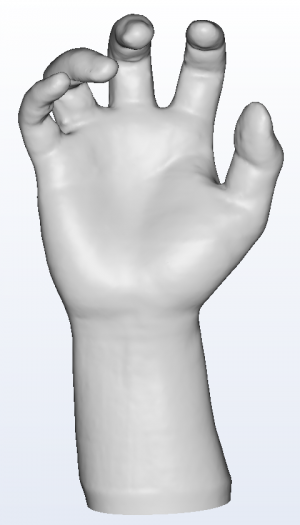

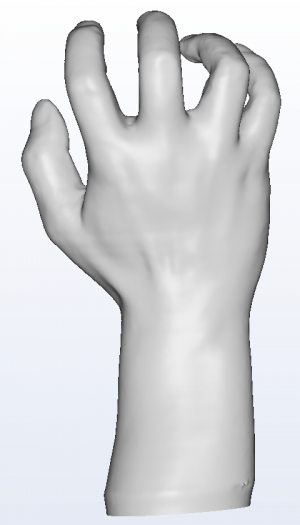

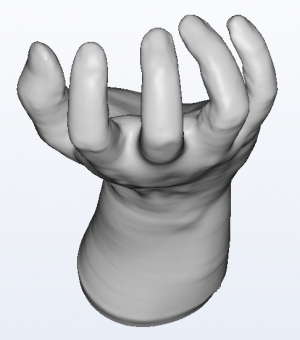

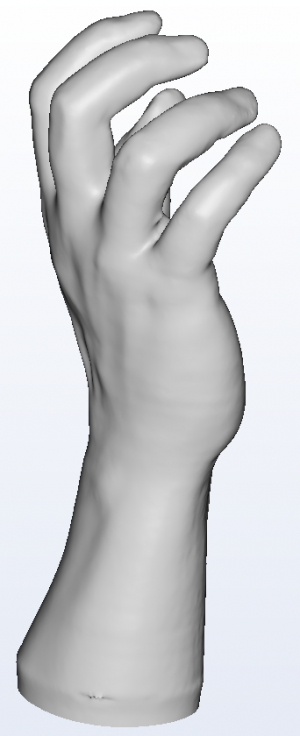

Hand scan
Scan Speed 3.6s~13.3s depending on resolution
Recommend i5-1240P/1340P 16G RAM, or similar CPU with 8 Core/16 threads. Integrated GPU OK

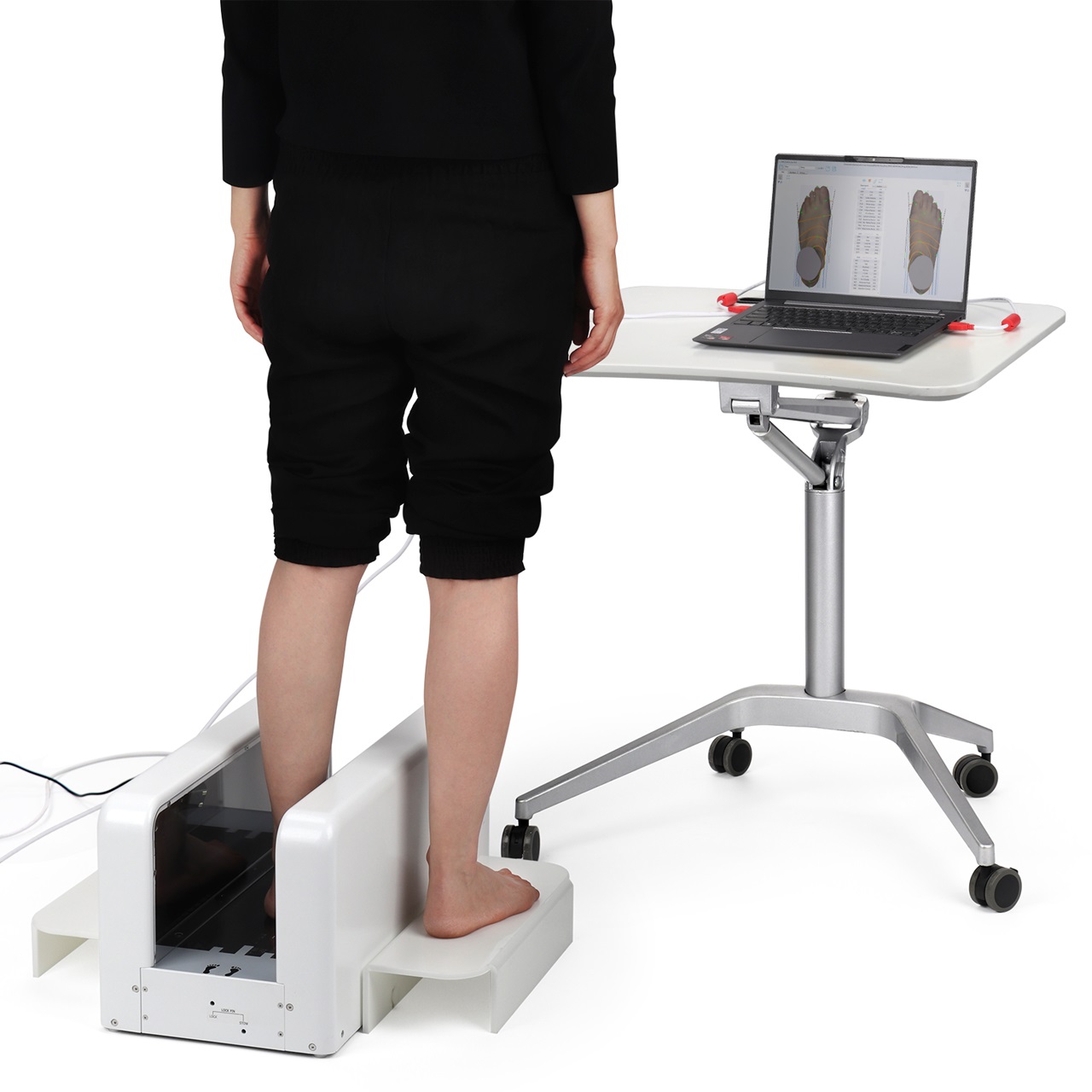

Software UI or Foot switch to activate scan
Normal lighting, open top coverless scan
Clean 3D mesh, +/- 0.5mm accuracy
Scan Volume: 380L X 150W X 175H mm
Size: 625L X 290W X 275H mm
Weight: 10.2Kg (22.5Lb)
Load Capacity: 180 Kg (397Lb)
Power adapter AC 100-240V; DC 12V/5A
Customizable panels design and color
CE/FDA/PSE certification/registration
One-year limited warranty
Win10/11, doesn’t support Win7/8

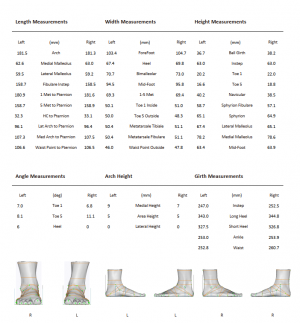

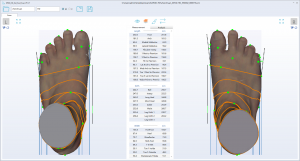

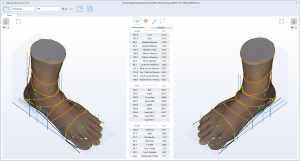

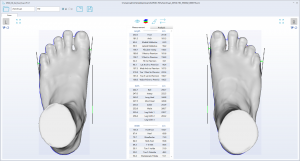

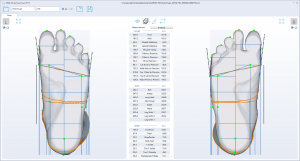

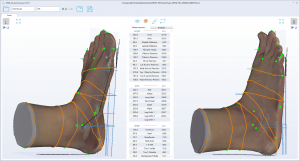

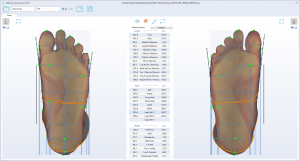

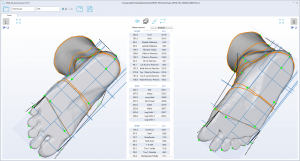

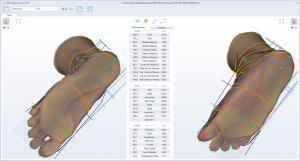

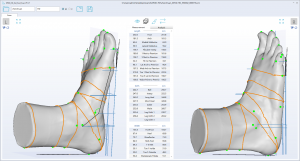

Auto 30 Landmark and 43 Measurements

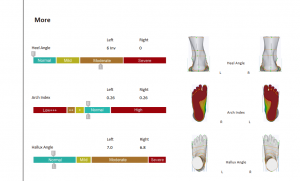

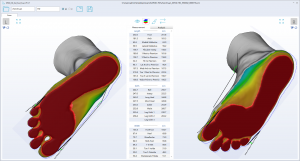

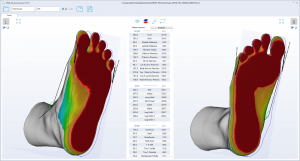

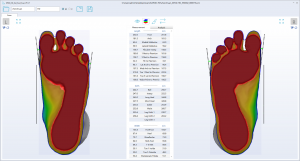

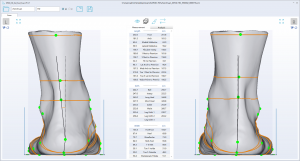

Auto analysis for arch type, bunion, and heel angle
Mark landmarks on foot then drag points to match

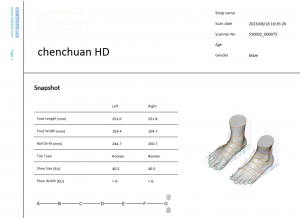

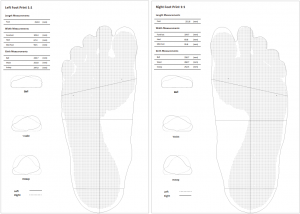

PDF Foot report with manual annotations
User-editable report templates, sell your own brand
User-define UI and icon color and your local language
Shoe size/width output for US/UK/EU/CN/JP standards
3D format STL/WRL/OBJ/PLY, 2D format JPG/PNG, PDF report, CSV data file
FTP send order to shoe/insole fabrication
User-define RX form for orthopedic shoe/insole
Developers: CMD/EXE call scanner to receive data-integration into your own CAD software and database
Optional encrypt scanners to lock files
Also support UPOD-S and UPOD-HD scanners
Scanner, USB Cable (two red plugs), Power Adapter, Foot Switch, and Side Standing Steps
PC must have two free USB-A or USB-C ports, USB2.0 or 3.0 will work.
You supply: Laptop or desktop PC with monitor/keyboard/mouse.
WHITE
BLACK

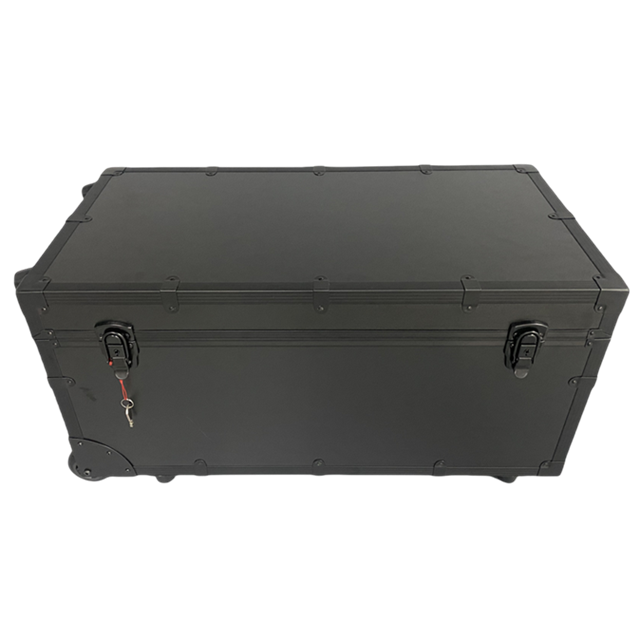

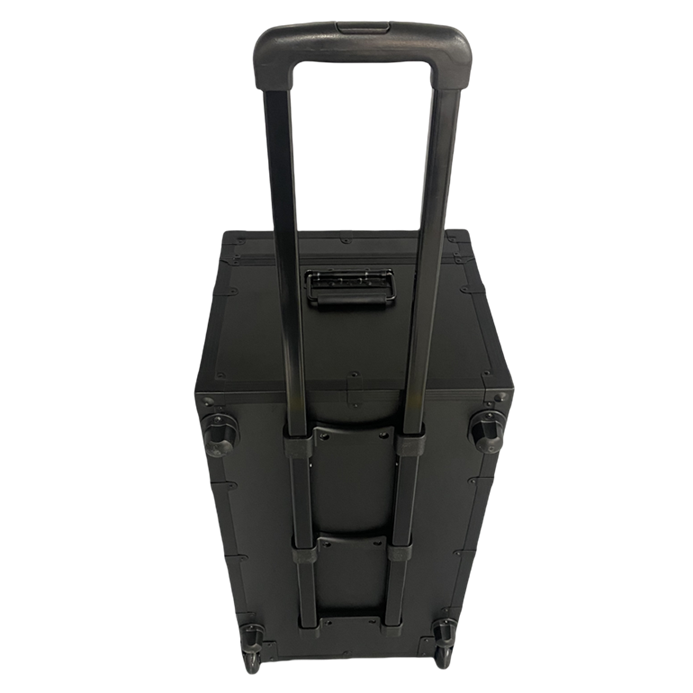

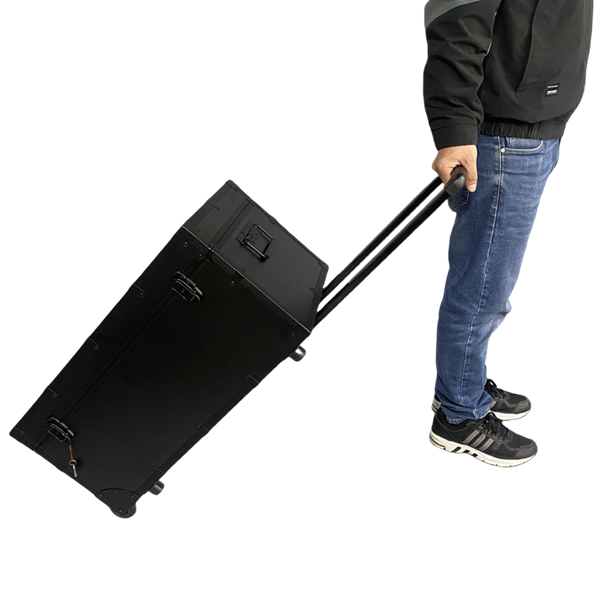

Portable: convenient for movement.
High-capacity: enough space for 3D foot scanner and all accessories.
Durable: solid to protect internal objects.
TOE SIDE UPSIDE
