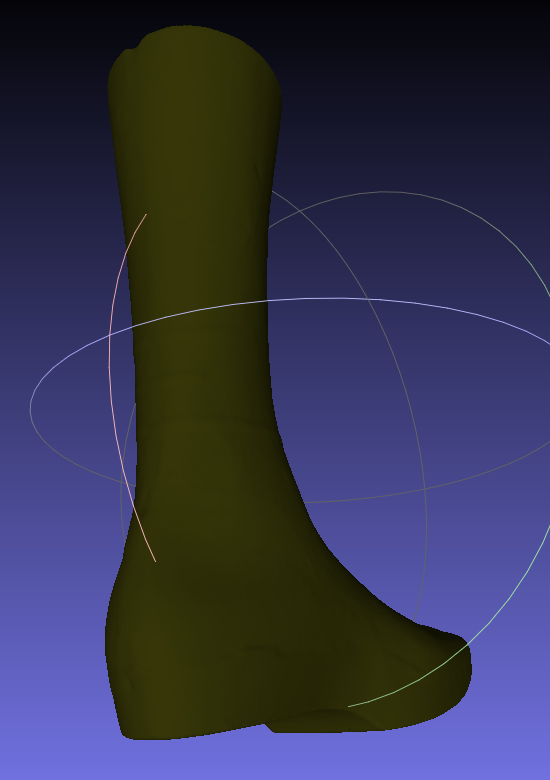

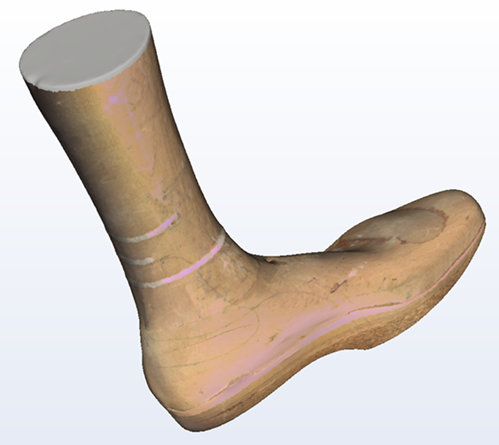

Full-foot 3D with color in non/semi/full-weight

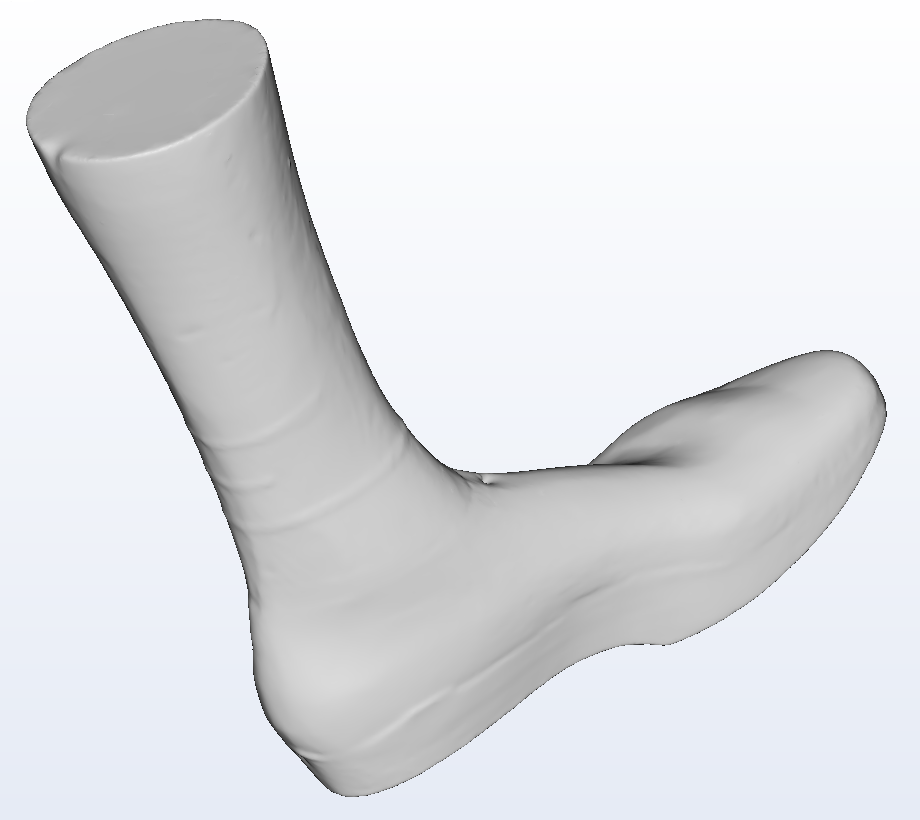

Shoe lasts (shiny surface may require powder coating)

High Speed: 12s/20s (without/with color texture)

Normal Speed: 22s/38s (without/with color texture)

Recommend i5-1240P/1340P 16G Ram, or similar

CPU with 8 Core/16 threads. Integrated GPU OK

Software UI or Foot switch to activate scan

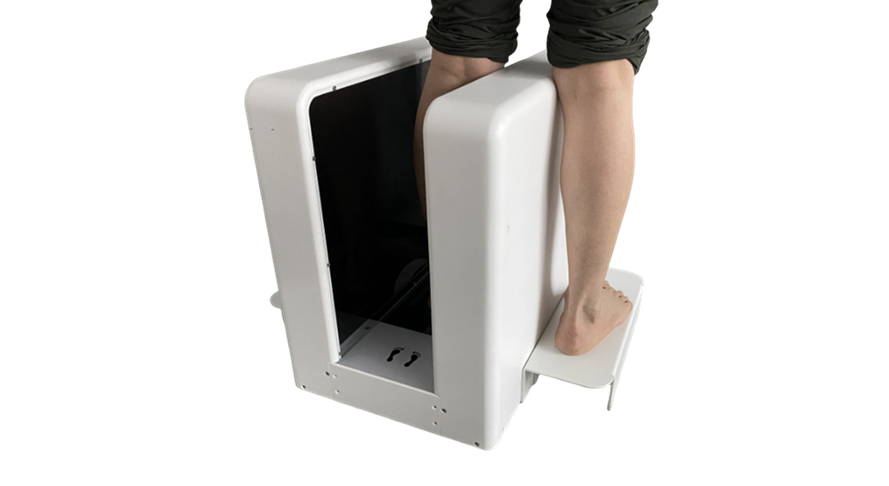

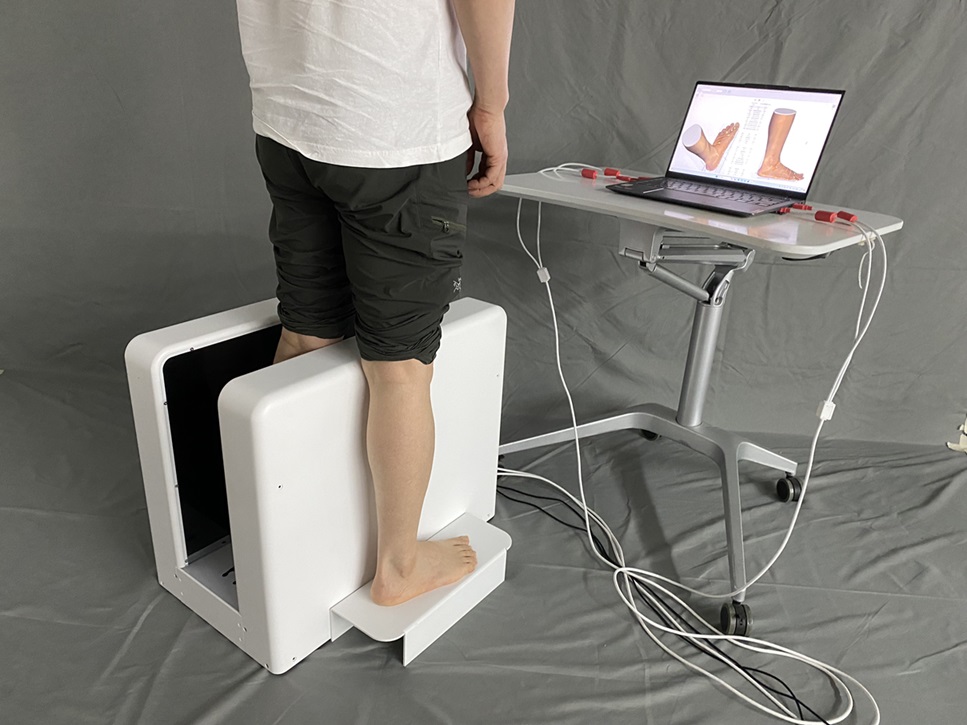

Normal lighting, open top coverless scan

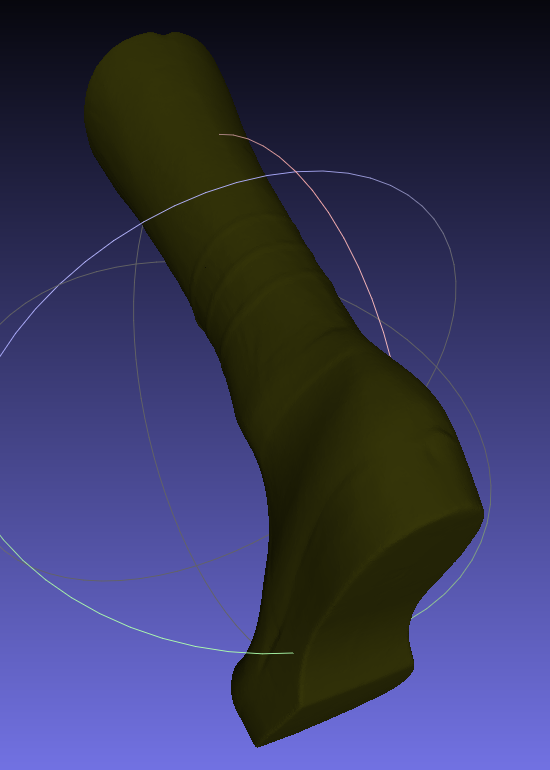

Clean 3D mesh, +/- 0.5mm accuracy

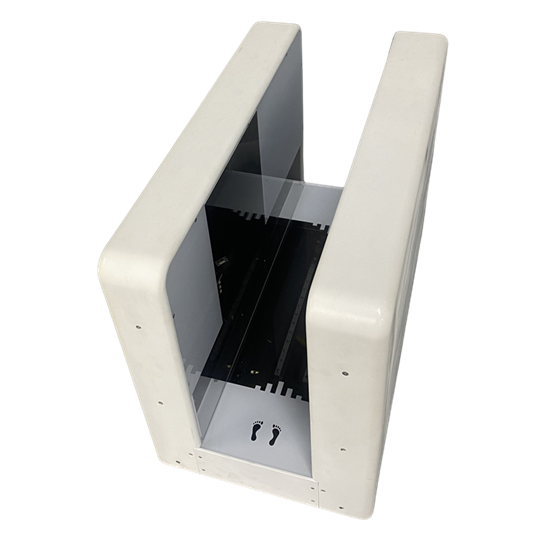

Scan Volume: 400L X 200W X 350H mm

Size: 760L X 410W X 550H mm

Weight: 22Kg (48.5Lb)

Load Capacity: 180 Kg (397Lb)

Power adapter AC 100-240V; DC 12V/6.67A

Customizable panels design and color

CE/FDA/PSE certification/registration

One-year limited warranty

Win10/11, doesn’t support Win7/8

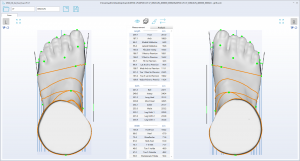

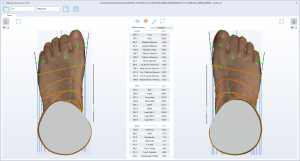

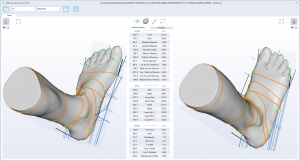

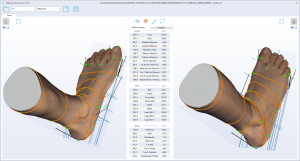

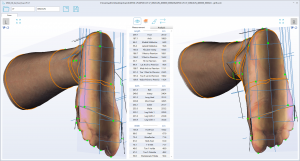

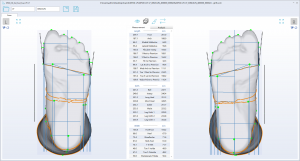

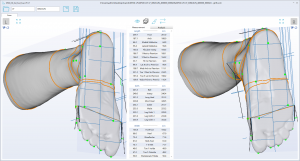

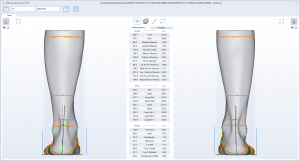

Auto 30 Landmark and 43 Measurements

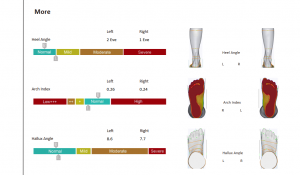

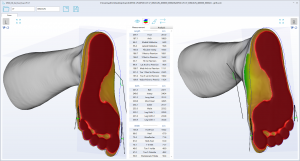

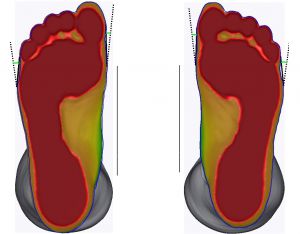

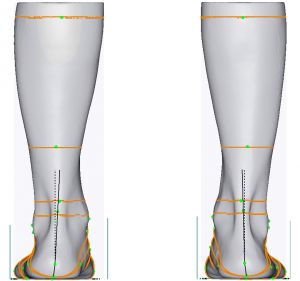

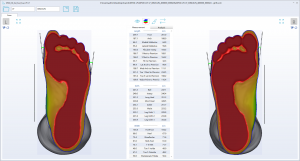

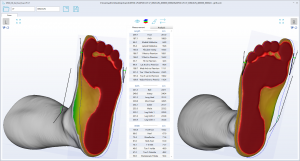

Auto analysis for arch type, bunion, and heel angle

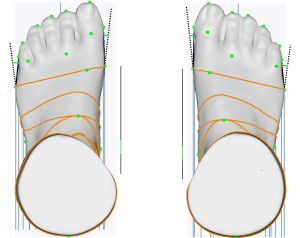

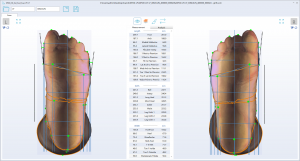

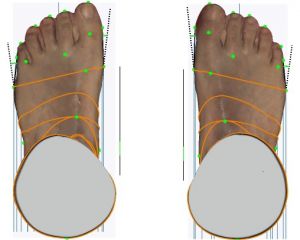

Mark landmarks on foot then drag points to match

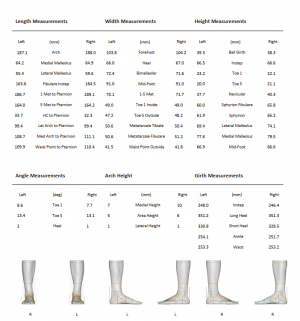

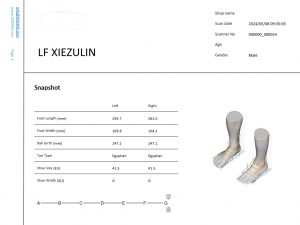

PDF Foot report with manual annotations

User-editable report templates, sell your own brand

User-define UI and icon color and your local language

Shoe size/width output for US/UK/EU/CN/JP standards

3D format STL/WRL/OBJ/PLY, 2D format JPG/PNG, PDF report, CSV data file

FTP send order to shoe/insole fabrication

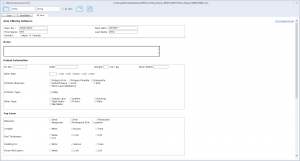

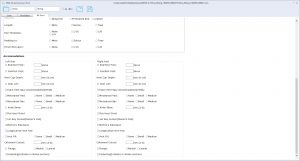

User-define RX form for orthopedic shoe/insole

Developers: CMD/EXE call scanner to receive data-integration into your own CAD software and database

Optional encrypt scanners to lock files

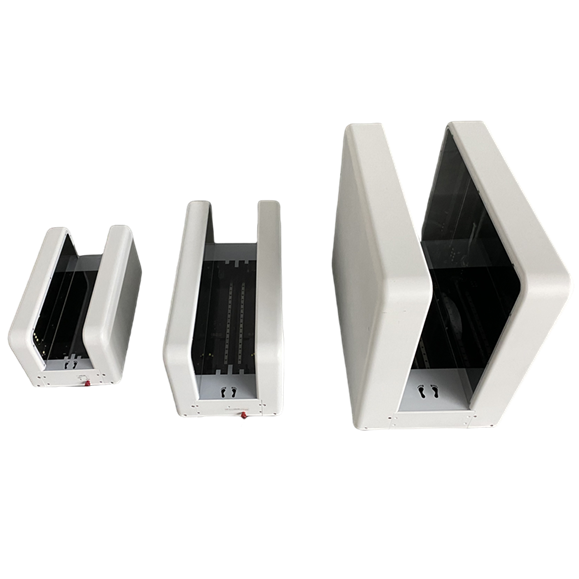

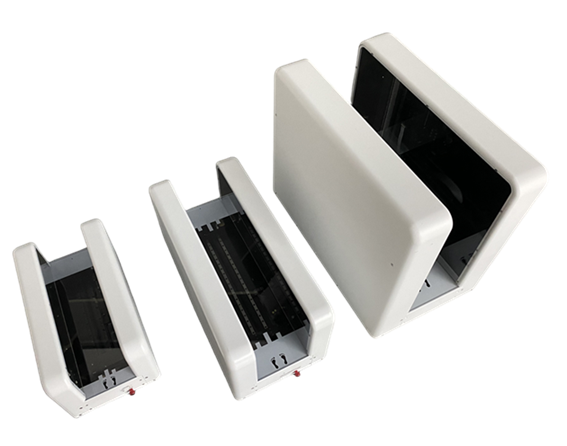

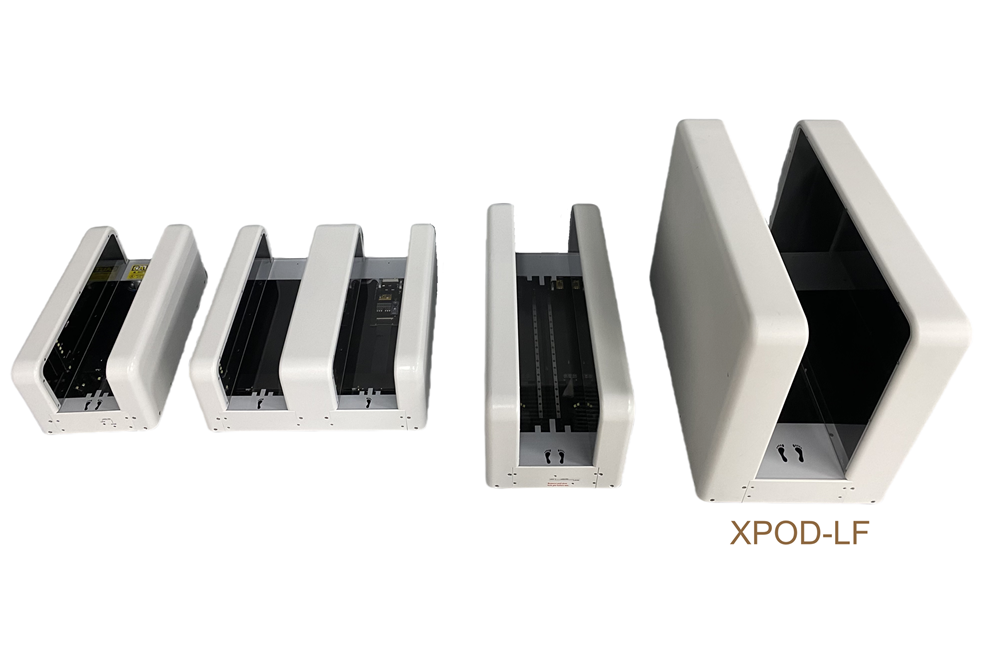

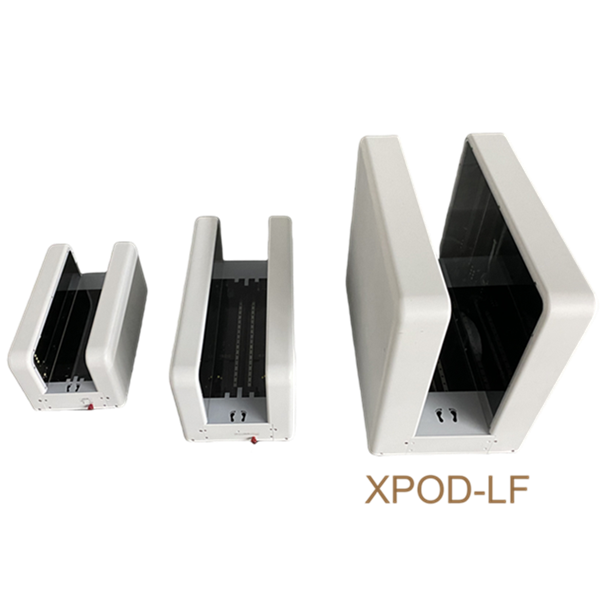

Also support UPOD-S and UPOD-HD scanners
