Fast true 3D laser scan with color texture.
Auto landmark, measurement, and analysis report.
Custom shoes and orthotic insoles for foot clinics and retail stores.
UPOD-S vs XPOD-S
UPOD-S vs XPOD-S

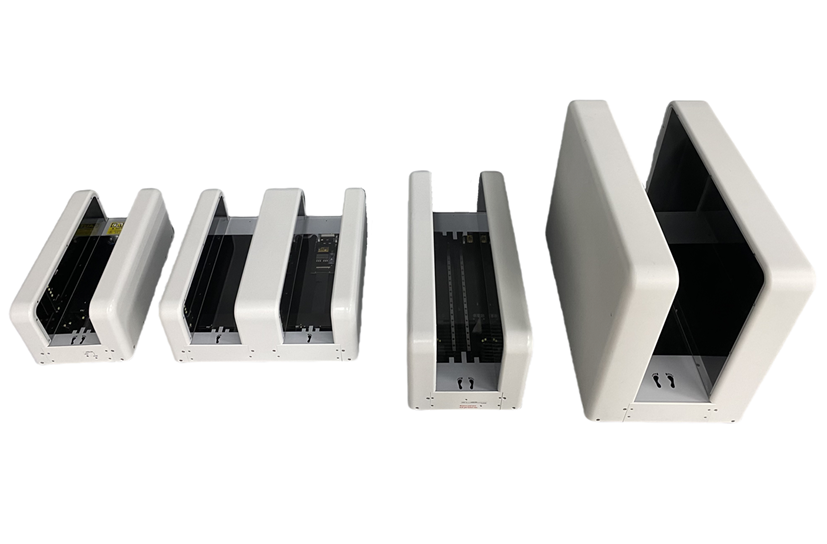

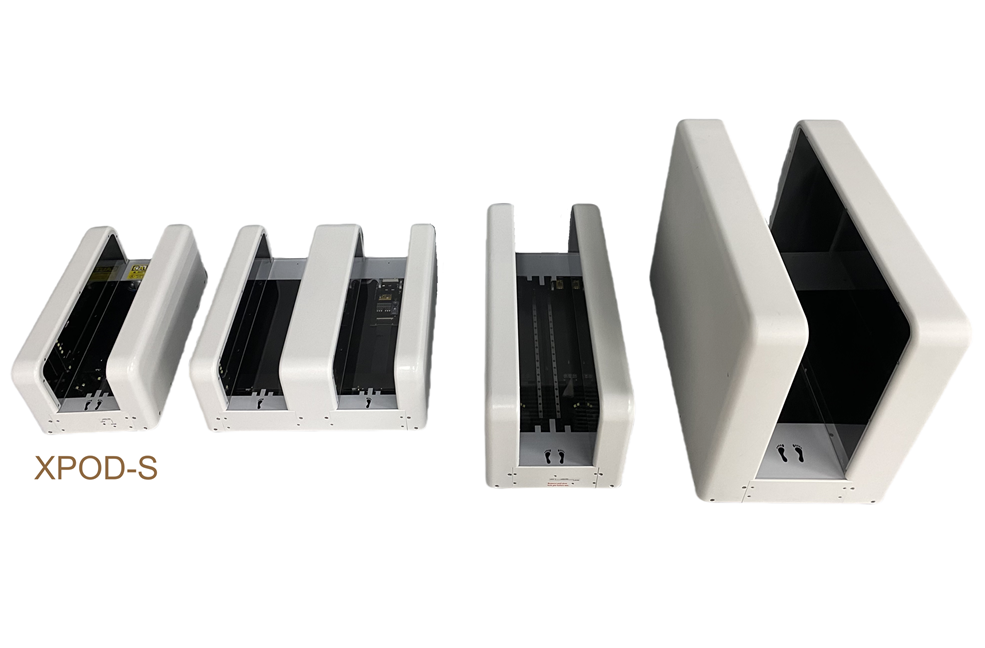

XPOD-S vs XPOD-SS2 vs XPOD-HD vs XPOD-LF

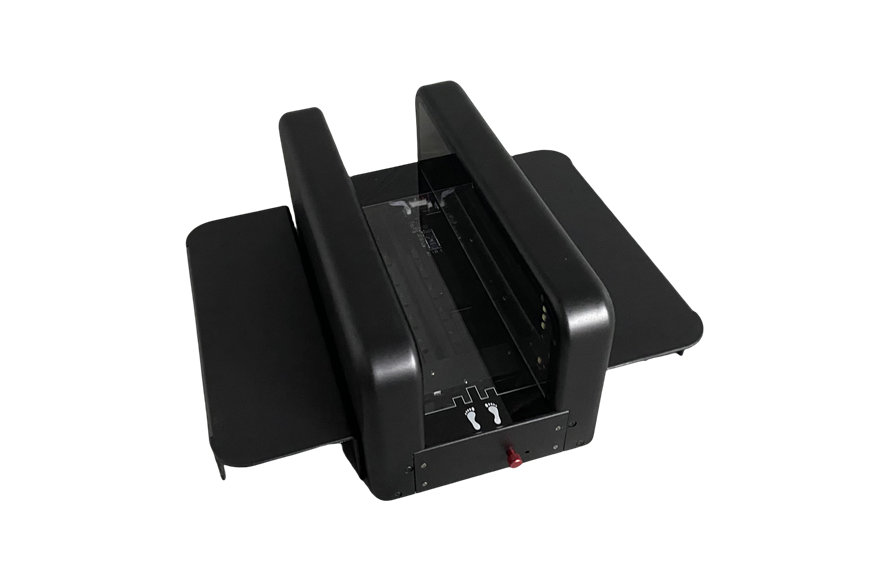

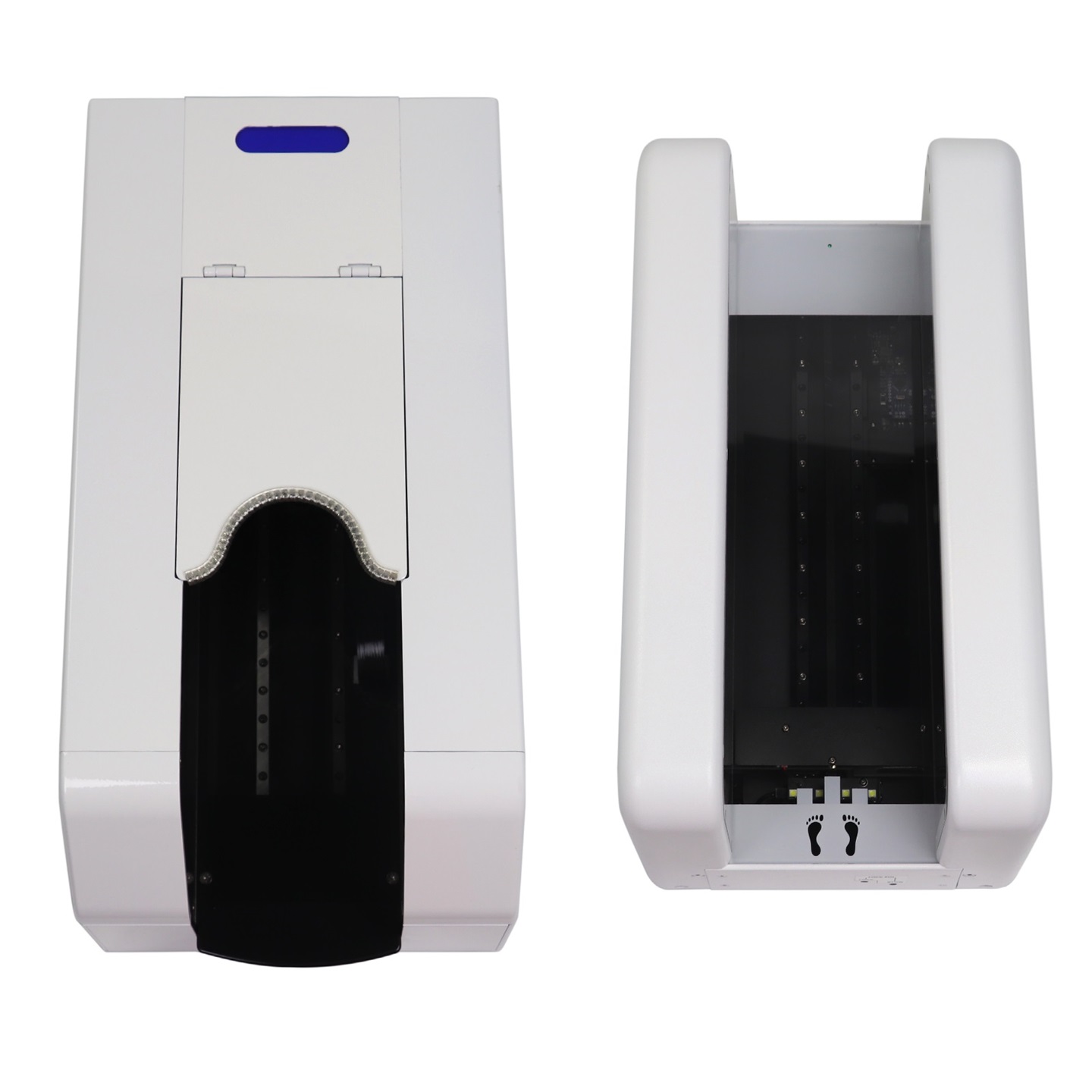

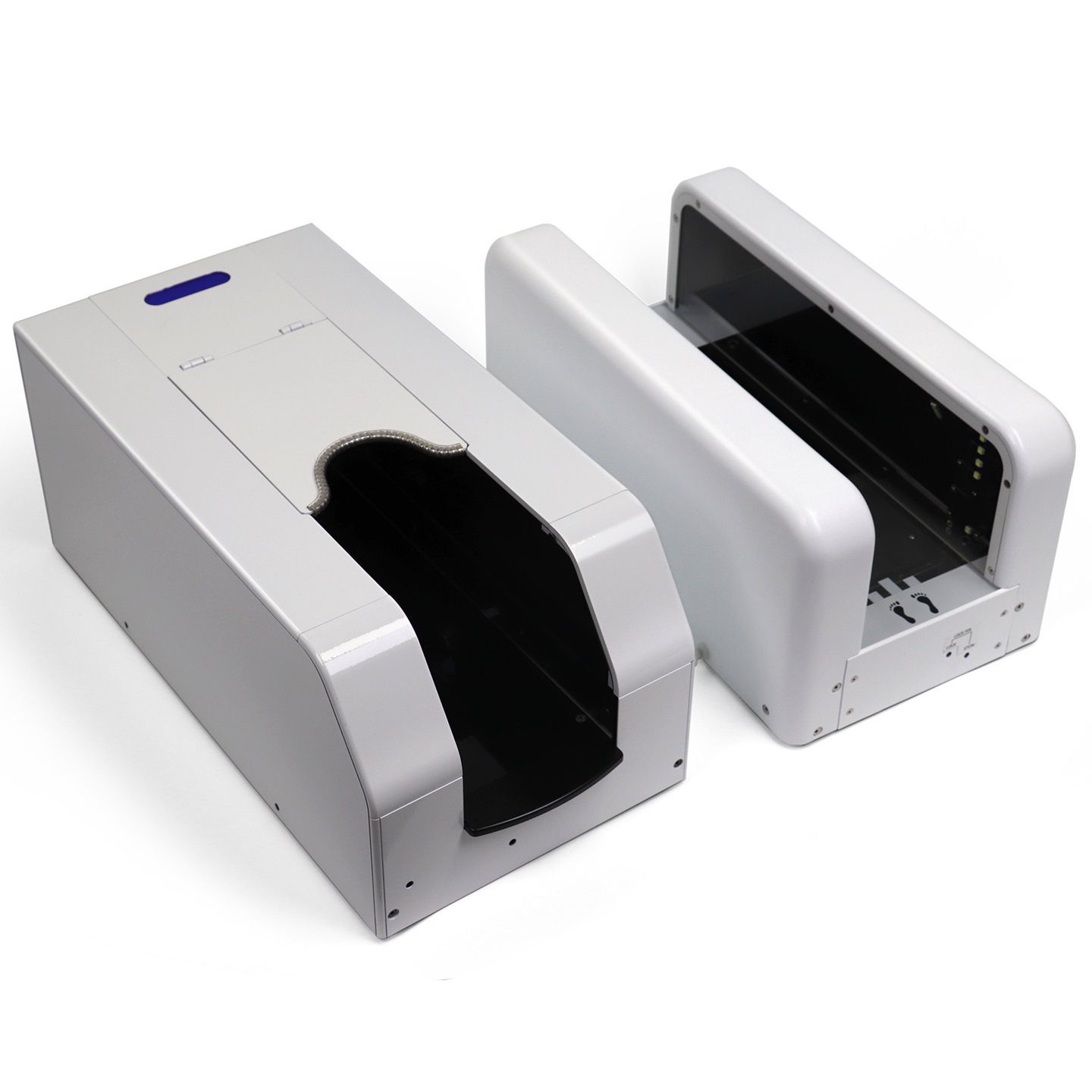

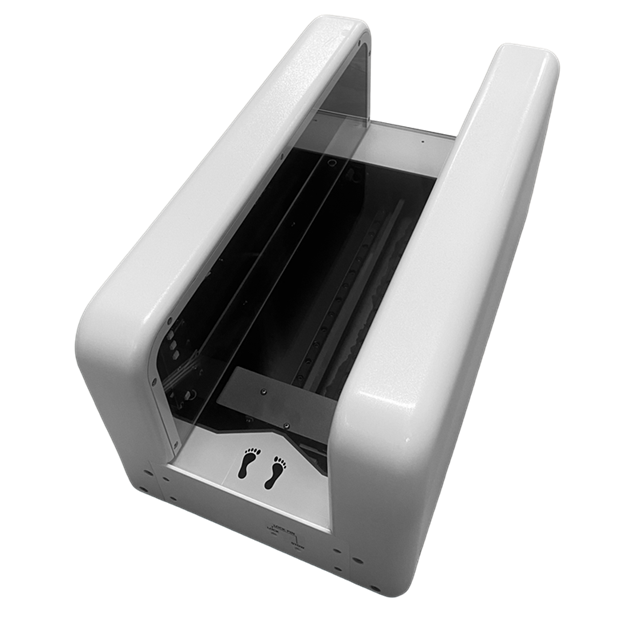

XPOD-S is Smaller/Lighter/Prettier than UPOD-S. Open top scan.
XPOD Software improves on UPOD software (Same file formats).
Full-foot 3D with color in non/semi/full-weight

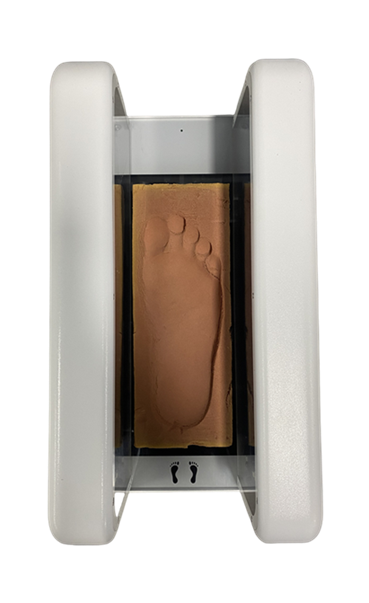

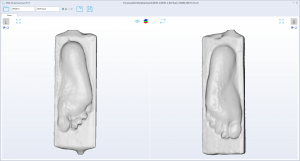

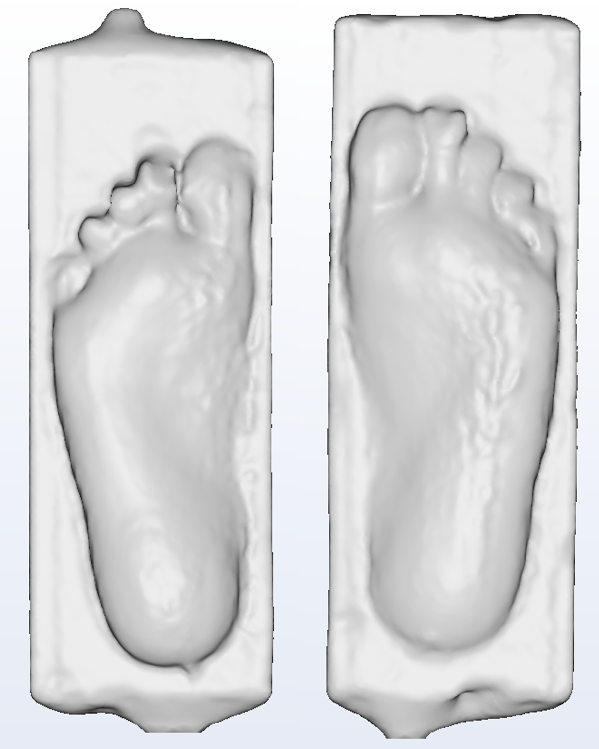

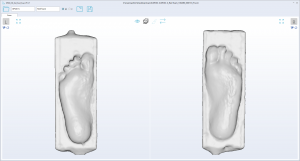

Foam Impression scan
High Speed 2.7s; Normal Speed 6.8s
Minimum CPU i5-1240P 16G RAM
Integrated GPU OK; Min 1080P display
Software UI or Foot switch to activate scan
Normal lighting, open top coverless scan
Clean 3D mesh, +/- 1.0mm accuracy
Scan Volume: 330L X 130W X 115H mm
Size: 475L X 255W X 216H mm
Weight: 6.6Kg (14.5Lb)
Load Capacity: 180 Kg (397Lb)
Power adapter AC 100-240V; DC 12V/3A
Customizable panels design and color
CE/FDA/PSE certification/registration
One-year limited warranty
Win10/11, doesn't support Win7/8

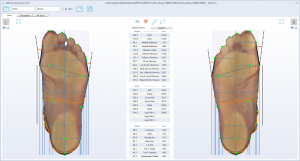

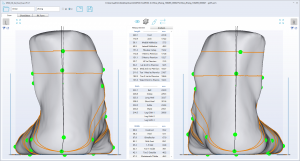

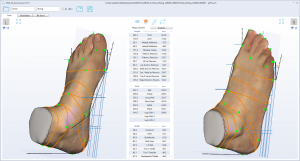

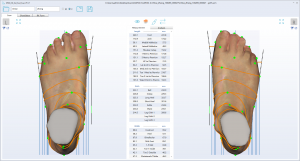

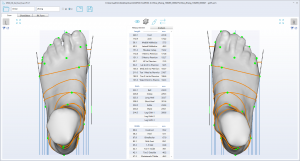

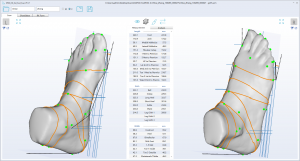

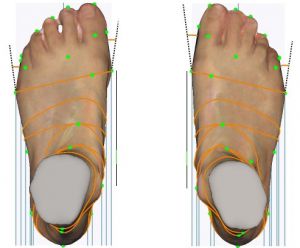

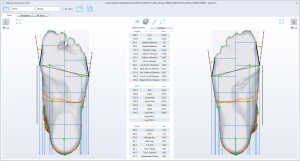

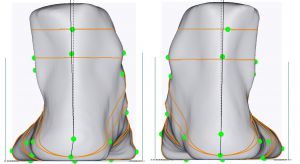

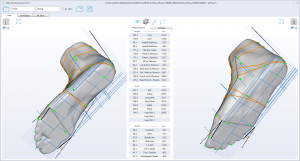

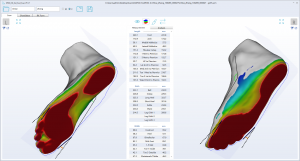

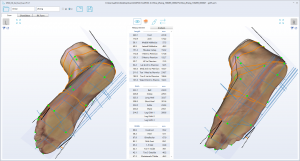

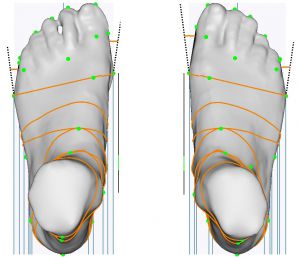

Auto 30 Landmark and 43 Measurements

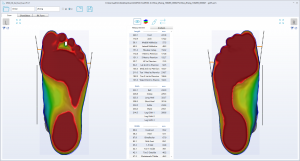

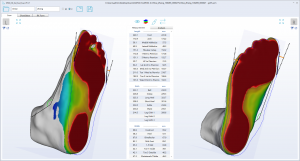

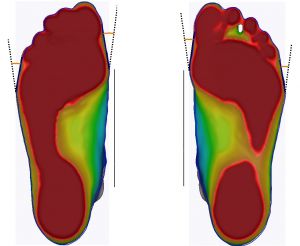

Auto analysis for arch type, bunion, and heel angle
Mark landmarks on foot then drag points to match

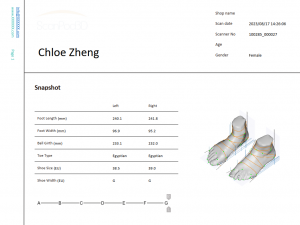

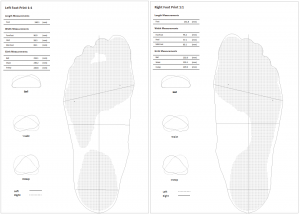

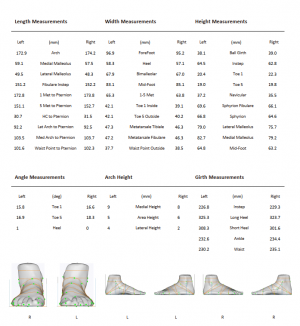

PDF Foot report with manual annotations
User-editable report templates, sell your own brand
User-define UI and icon color and your local language
Shoe size/width output for US/UK/EU/CN/JP standards
3D format STL/WRL/OBJ/PLY, 2D format JPG/PNG, PDF report, CSV data file
FTP send order to shoe/insole fabrication

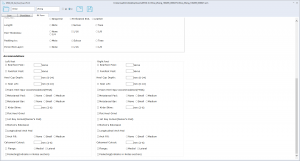

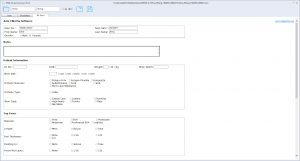

User-define RX form for orthopedic shoe/insole
Developers: CMD/EXE call scanner to receive data-integration into your own CAD software and database
Optional encrypt scanners to lock files
Also support UPOD-S and UPOD-HD scanners

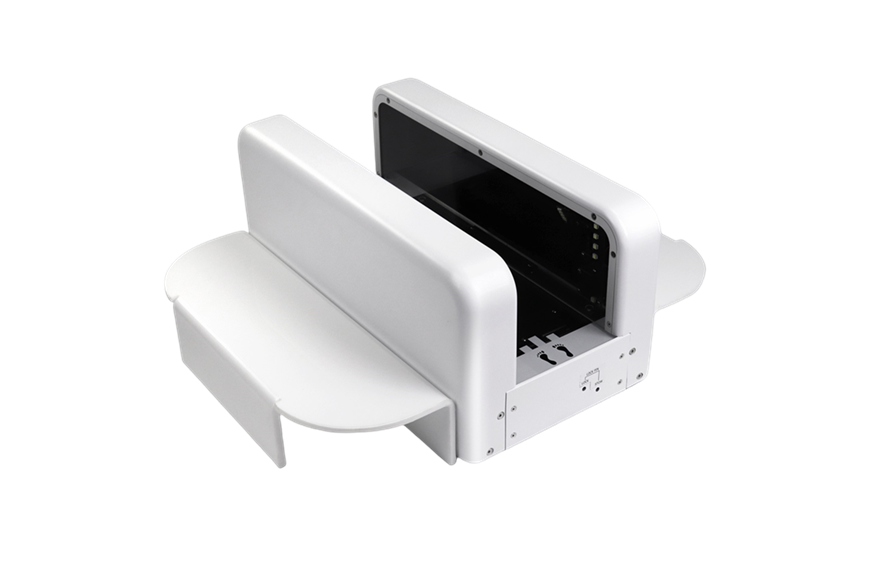

Scanner, USB Cable (two red plugs), Power Adapter, Foot Switch, and Side Standing Steps.
You supply: Laptop or desktop PC with monitor/keyboard/mouse.

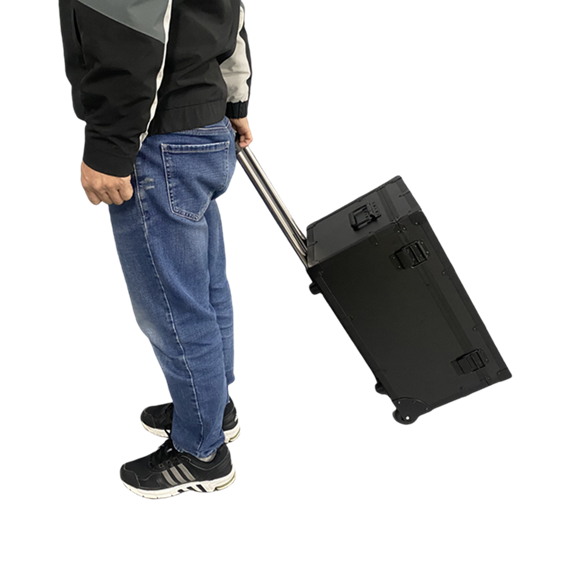

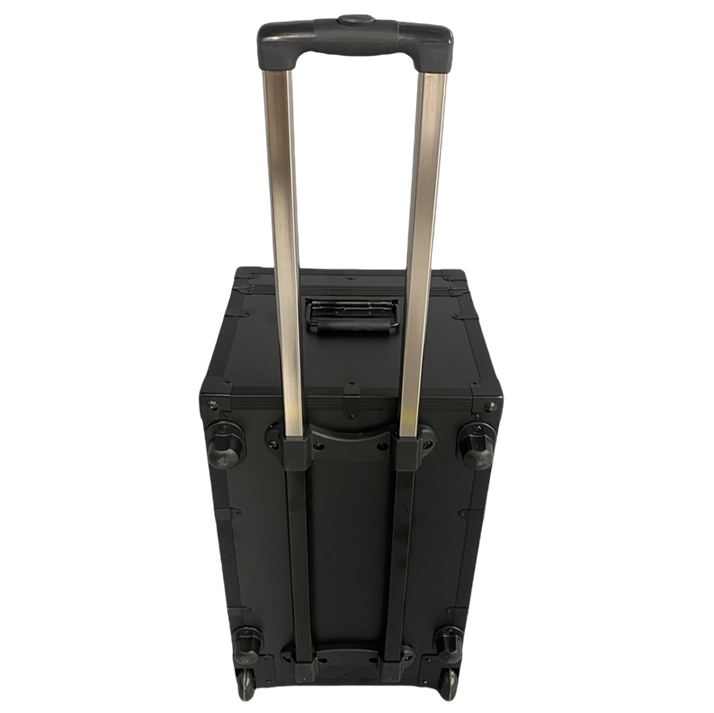

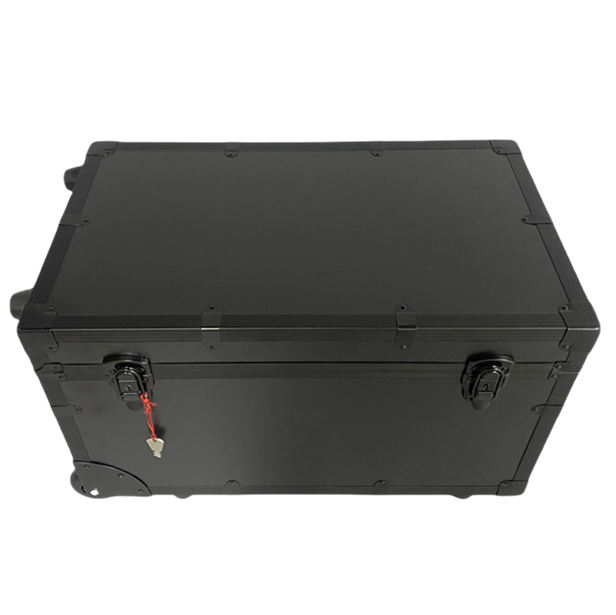

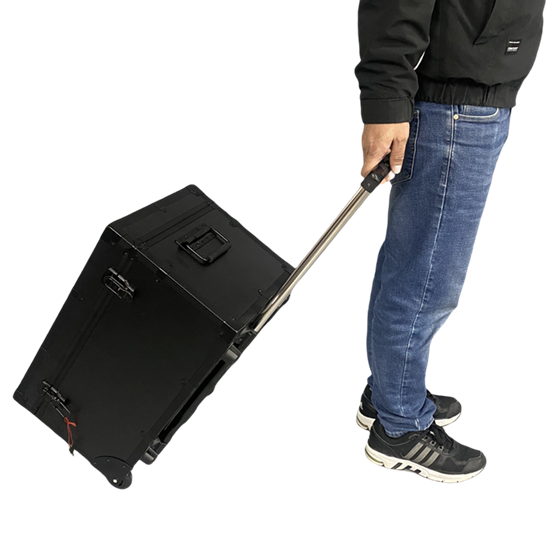

Optional: hard shell rolling case. Note shipping the scanner inside the case (adds more bulk) is more expensive than shipping with paper carton. And shipping the case separately is very expensive. All shipping is by air courier.

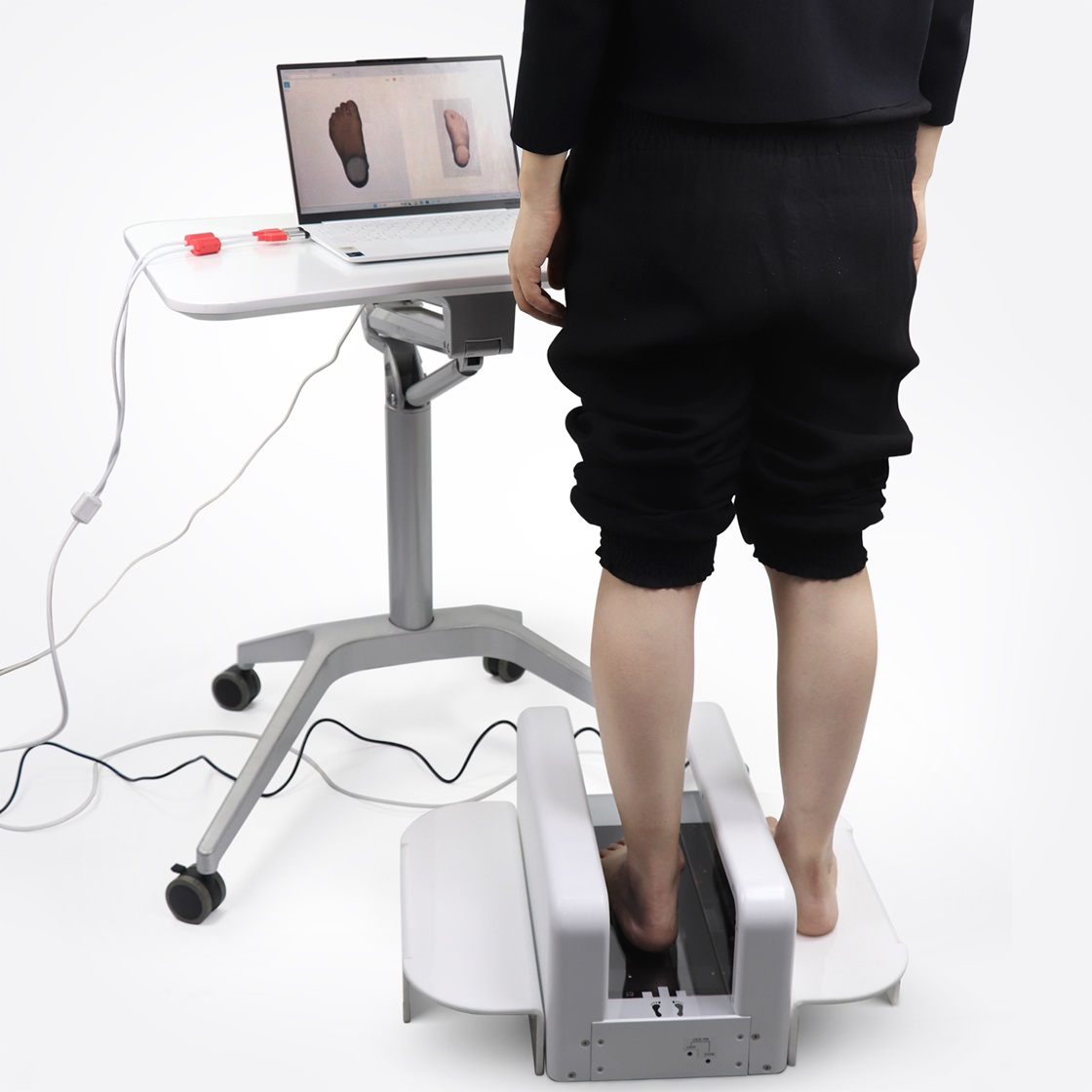

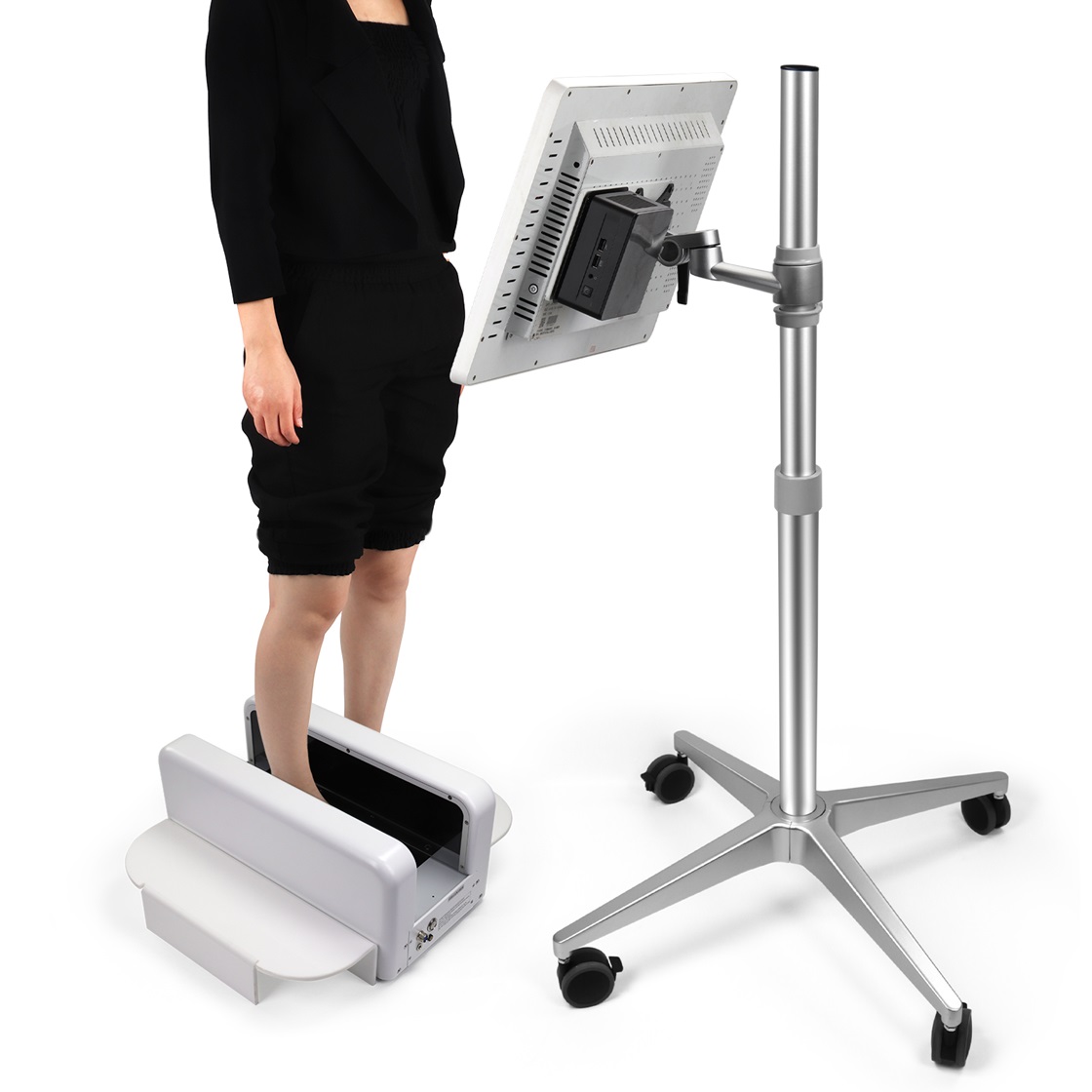

Scanner, USB Cable (two red plugs), Power Adapter, Foot Switch, Side Standing Steps, and Pedestal.
Pedestal has VESA mounting holes for PC and monitor. Mini-PC to be mounted behind the monitor.
Pedestal is delivered disassembled to reduce shipping size. Weight is 5KG.
You Supply: Mini-PC (Intel NUC 12th Gen or equivalent) and Touch Monitor (VESA mounting).
Optional: We supply Mini-PC with Touch Monitor.
WHITE
BLACK
Portable: convenient for movement.
High-capacity: enough space for 3D foot scanner and all accessories.
Durable: solid to protect internal objects.
TOE SIDE UPSIDE
