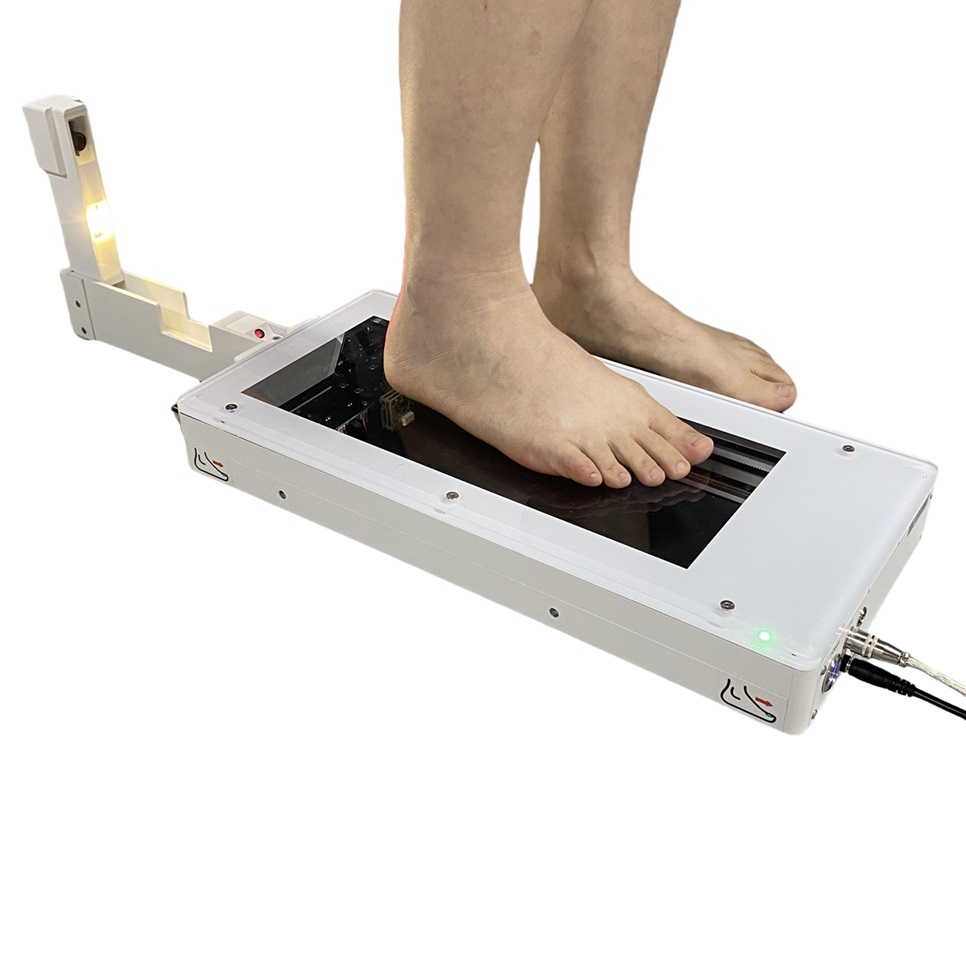

Portable and reliable. Fast true 3D laser scan with color texture.
Auto landmark, arch index, measurement, and analysis report.
Custom shoes and orthotic insoles for foot clinics and retail stores.
XSOL vs USOL
USOL vs XSOL

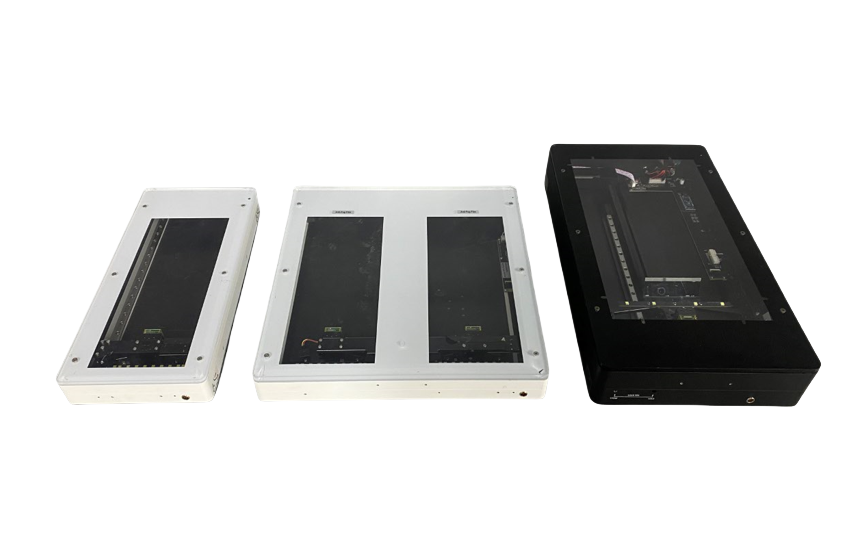

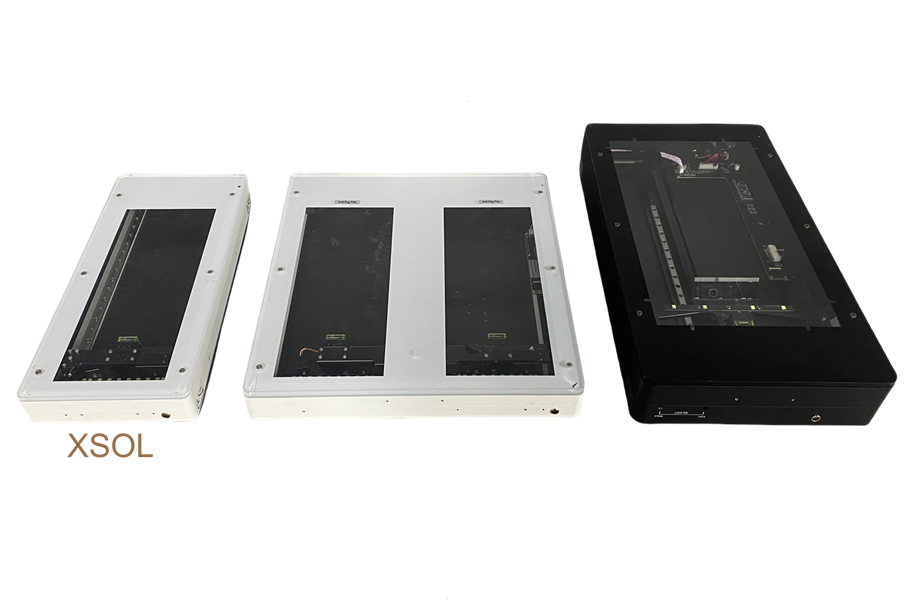

XSOL vs XSOL-DUO vs XSOL-X2

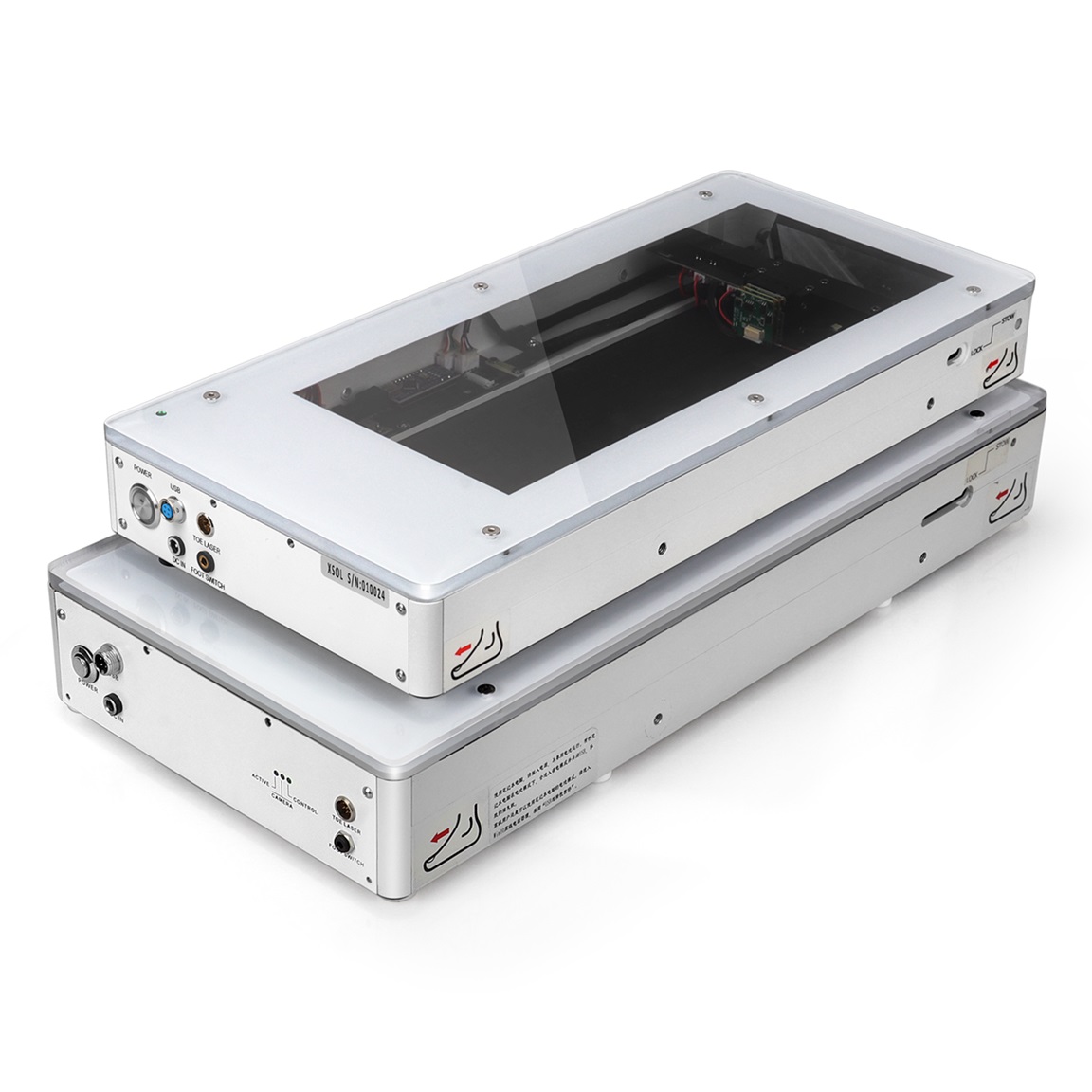

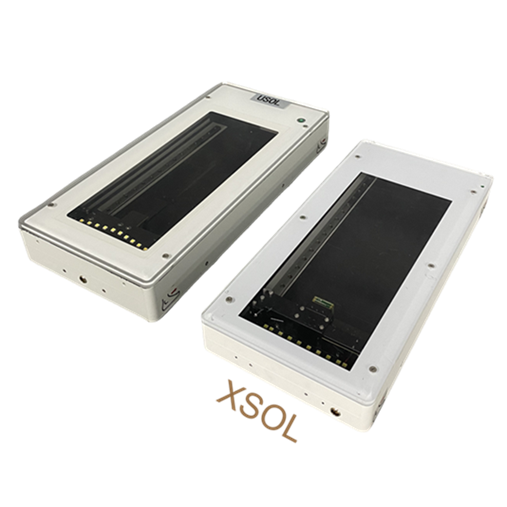

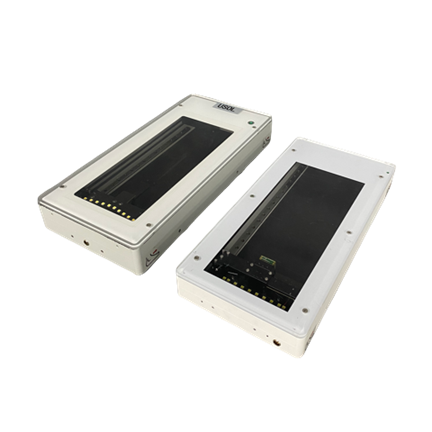

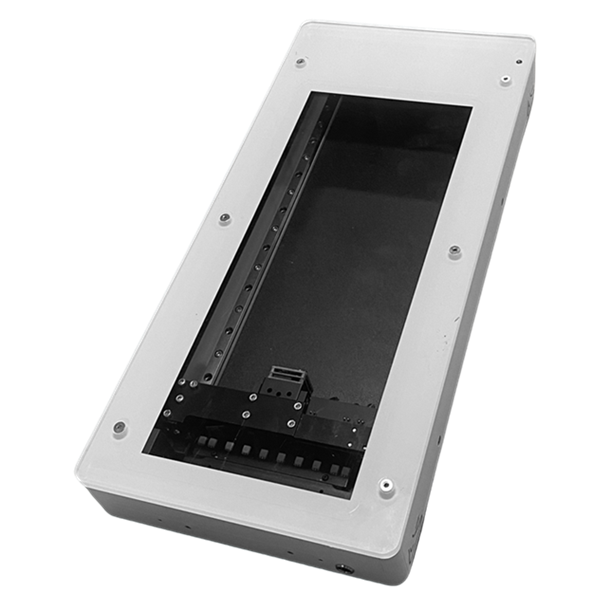

XSOL is Smaller/Lighter/Portable/Faster than USOL.
XSOL software improves on USOL software (Same file formats).

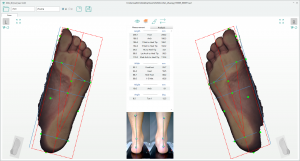

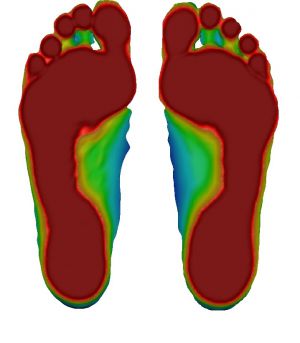

Foot Plantar 3D with color in non/semi/full weight

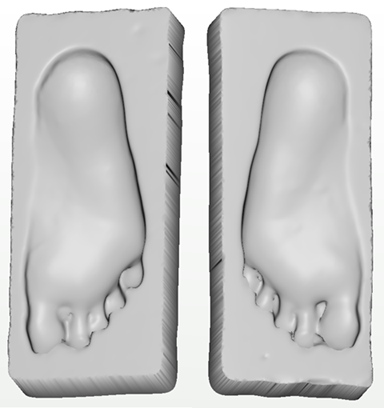

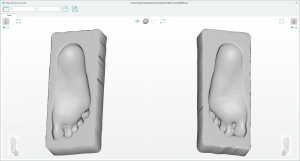

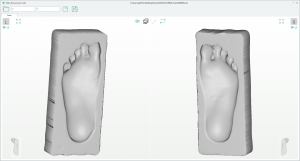

Foam Impression and Plaster Cast
Laser 3D Scan 2.0s one-way
Color texture 2.0s/4.9s for normal/high resolution
High resolution color can match 2D office scanner
PC Minimum CPU N100 8G RAM 1080P display
PC Recommended N5105 8G RAM or better
Software UI or Foot switch to activate scan
Room lighting (improved noise filtering than USOL)
Heel camera has higher resolution than USOL

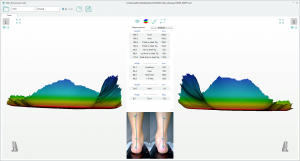

Clean 3D mesh, +/- 1.0mm accuracy
Scan Volume: 330L X 140W X 80H mm
Size: 455L X 212W X 55H mm
Weight: 3.2Kg (7.1Lb)
Load Capacity: 180 Kg (397Lb)
Power adapter: AC 100-240V; DC 12V/3A
Customizable panels design and color
CE/FDA/PSE certification/registration
One-year limited warranty
Win10/11, doesn't support Win7/8

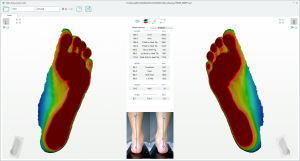

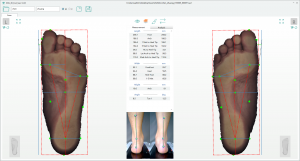

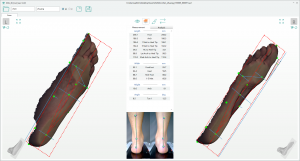

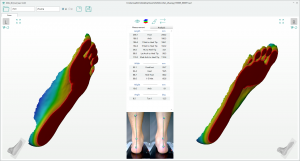

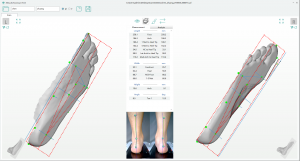

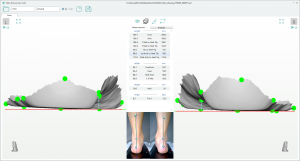

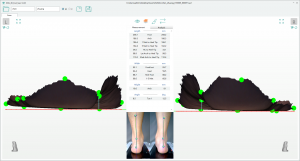

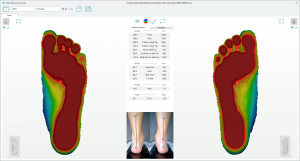

Auto analysis for arch type, bunion, and heel angle

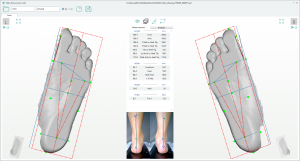

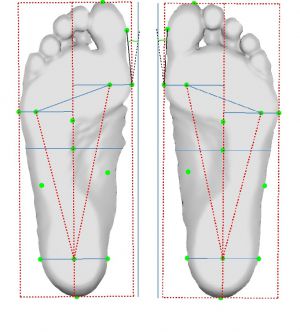

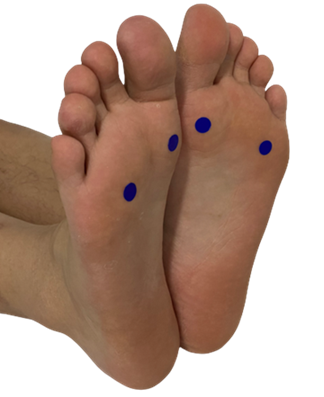

Auto tracking blue markers at 1st and 5th met points

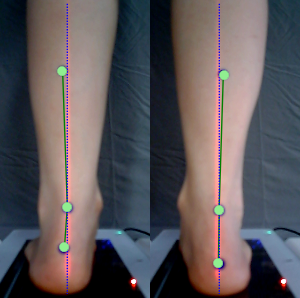

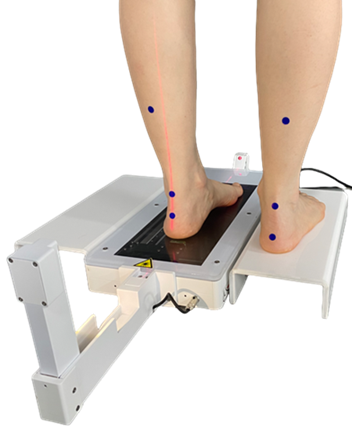

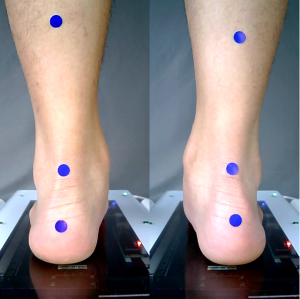

Auto tracking blue markers at 3 heel points

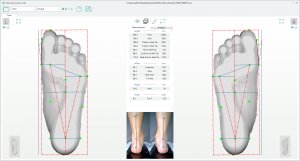

Mark landmarks on foot then drag points to match

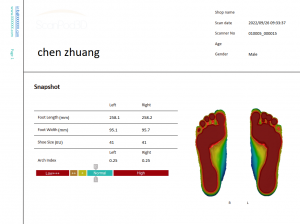

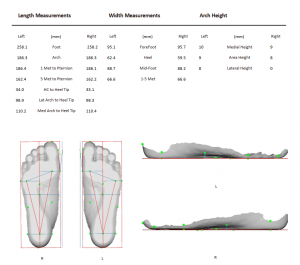

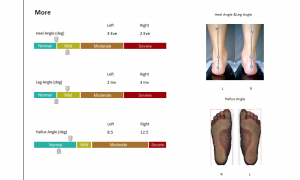

PDF Foot report with manual annotations
User-editable report templates, sell your own brand
User-define UI and icon color
Default English. Translate into your own local language
Shoe size US/UK/EU/CN/JP standards
Export to STL/WRL/OBJ/PLY, PDF report, CSV data files
FTP send order to shoe/insole fabrication

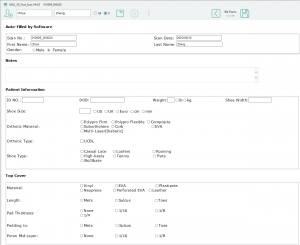

User-define RX form for orthopedic shoe/insole
Developers: CMD/TCP call scanner to receive data-integration into your own CAD software and database
Optional encrypt scanners to lock files
Also support USOL, USOL-DUO and USOL-X scanners
Scanner, Power Adapter, USB Cable (Clear), Foot Switch, Foldable Heel Camera (with laser) .

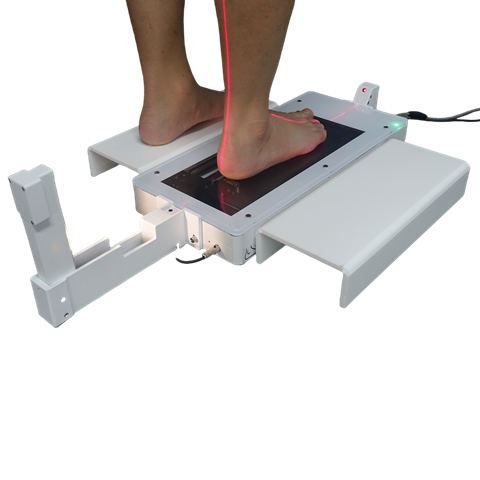

XSOL Standard plus Toe Laser, Side Steps (Pair).
XSOL Standard plus Toe Laser, Pedestal (with wheels) and VESA Conversion Bracket.

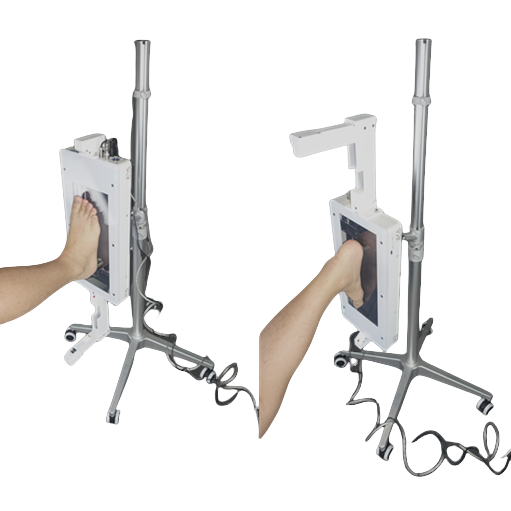

Pedestal needs assemble to reduce shipping size. Weight is 5KG. Support mounting position for supine or prone scans.
Height adjustable 500-1200mm. Heel Camera records heel position. Heel and Toe laser help to control foot posture.

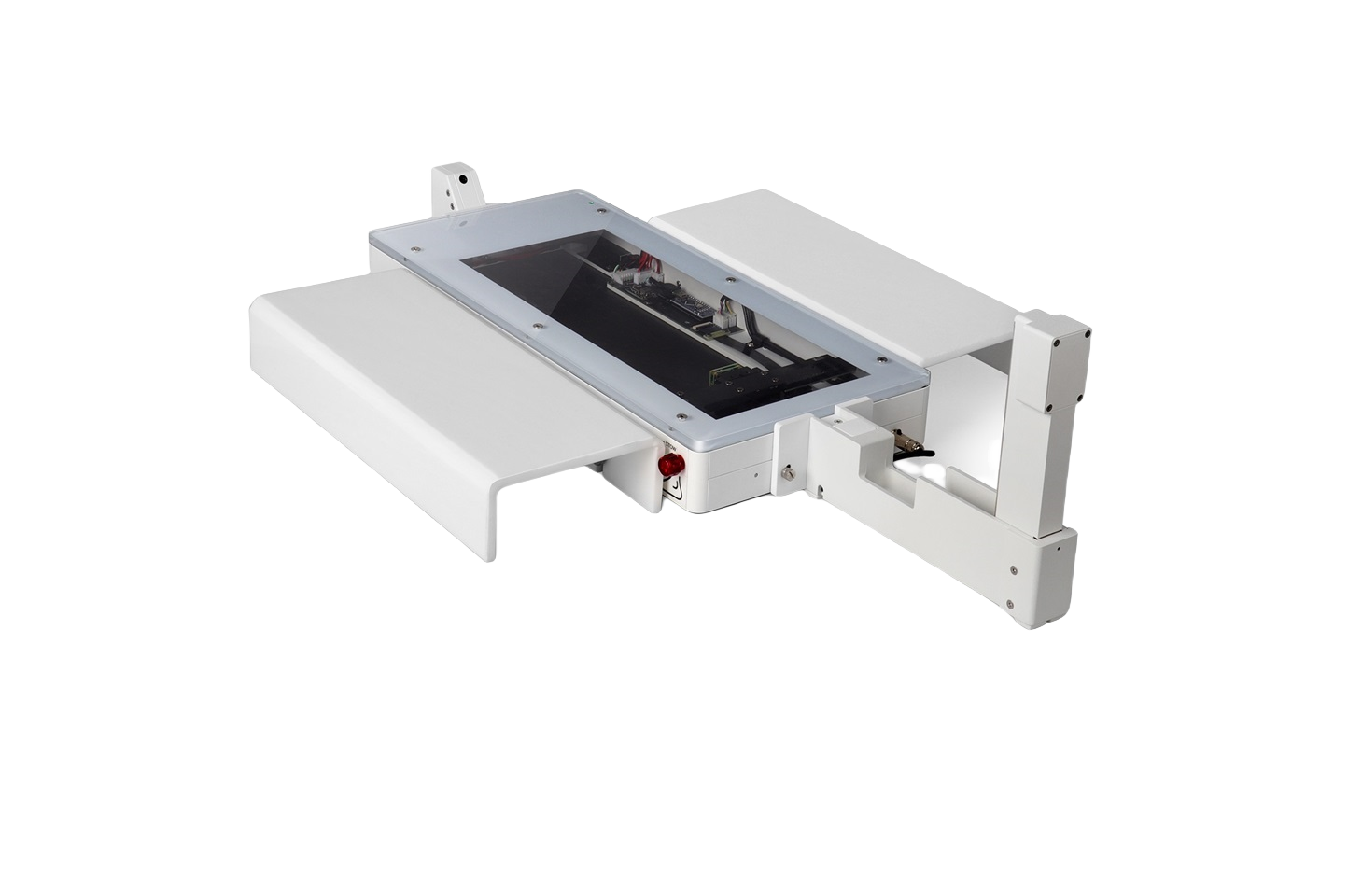

WHITE

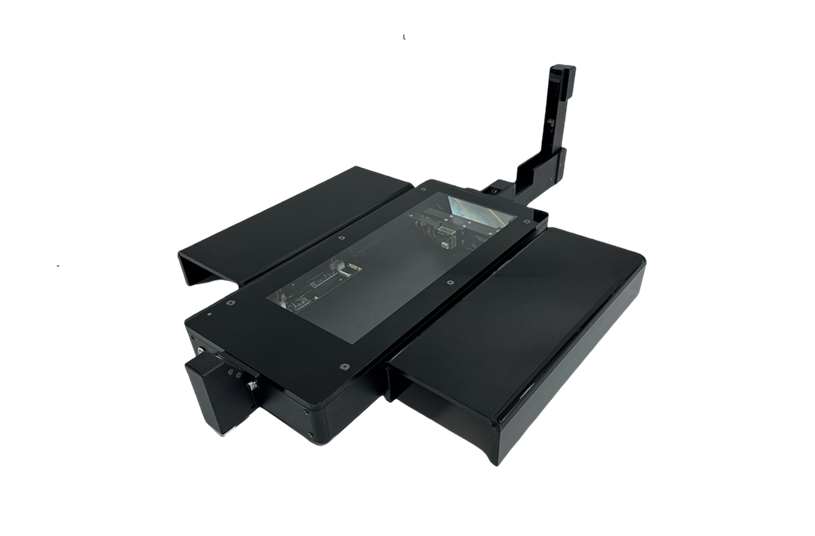

BLACK

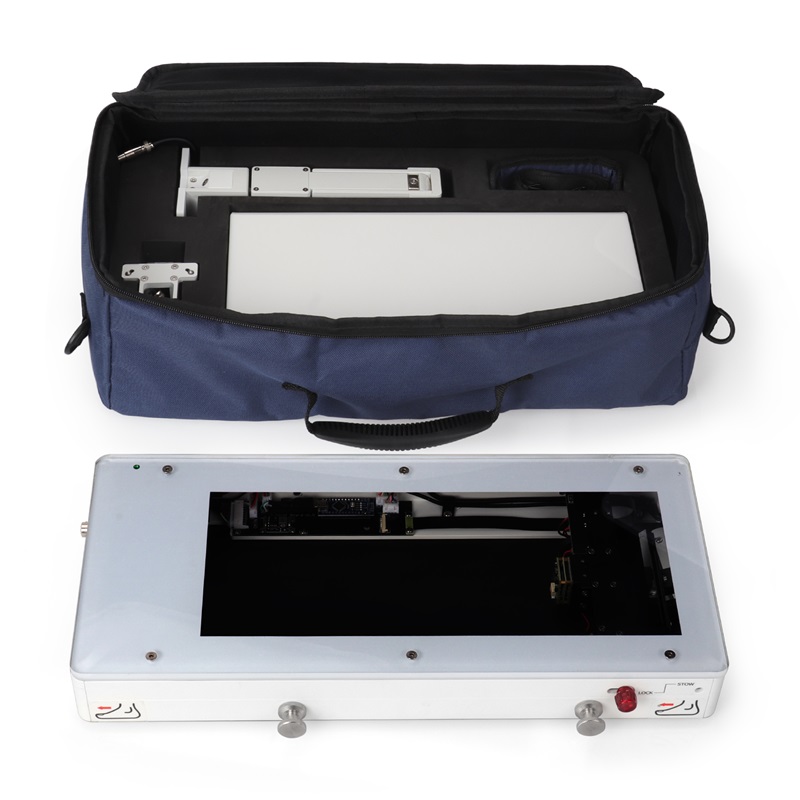

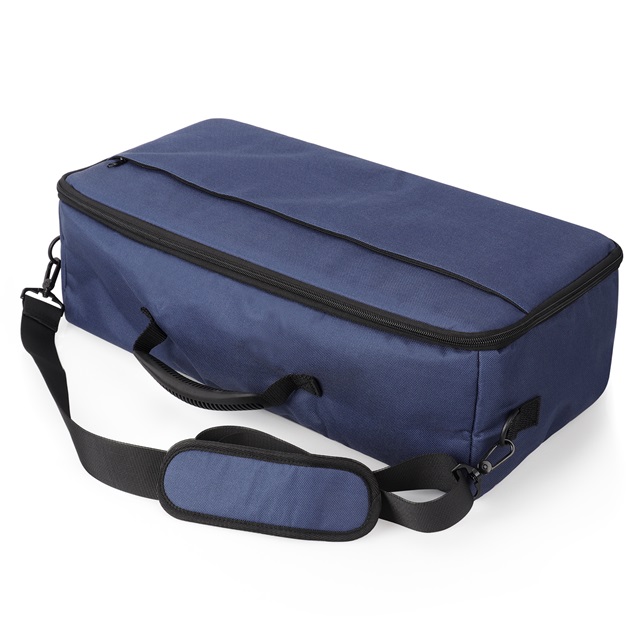

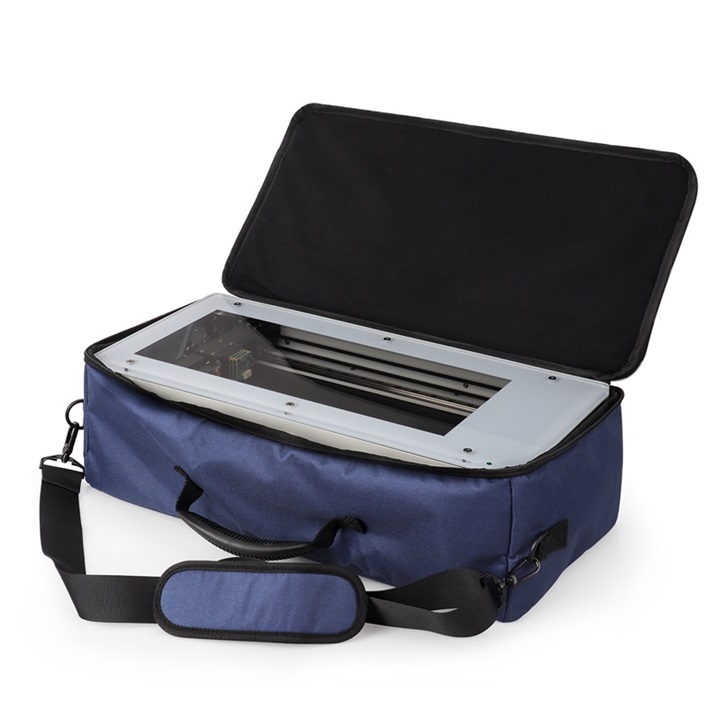

It can fit the entire XSOL Standard, XSOL Floor, or XSOL Vertical (without the pedestal) inside.

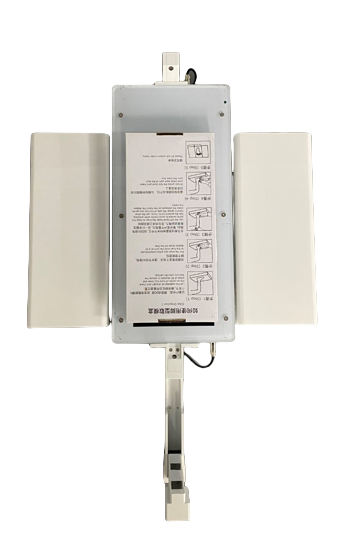

TOE SIDE DOWNSIDE

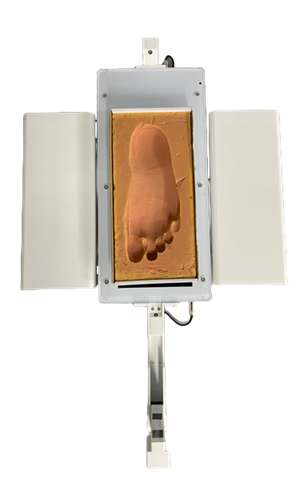

FACE DOWN THE FOAM
